6. Remove three T-20 screws from the washer
front support bracket securing the top and
front of the chemical dispenser.
7. Remove two 1/4” hex head screws from the
top edge of the left and right ends securing
the front support bracket to the side panels.
8. Lift the bracket and remove it from the
washer.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove dryer from stack (See page 4-11).
4. Remove the UIC transformer
(See page 4-57).
5. Remove the two 1/4” hex head screws
securing the plastic strips with locator pegs
on the top edge of each side panel.
FRONT SUPPORT BRACKET - WASHER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

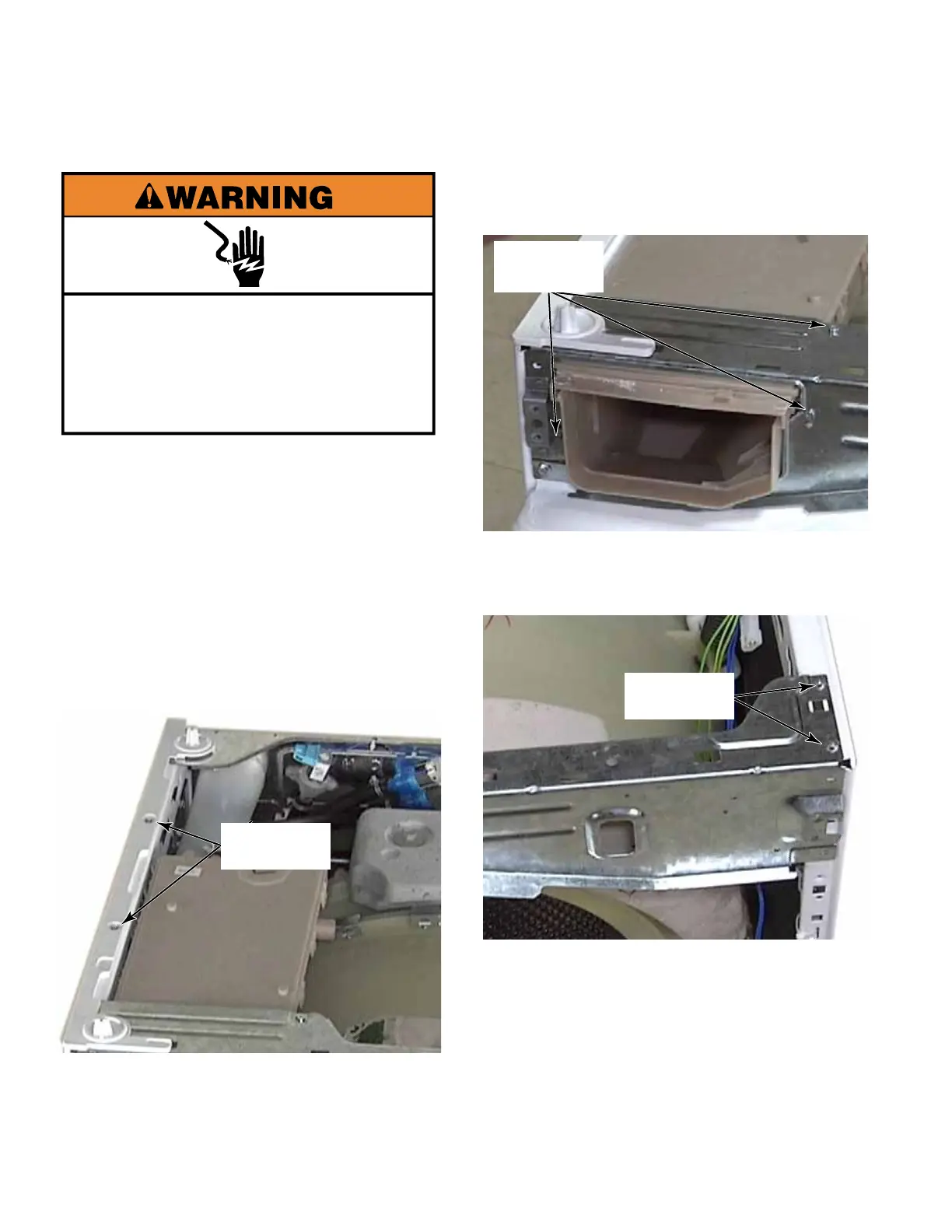

Two 1/4”
Screws
Three T-20
Screws
Two 1/4”
Screws
