Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Remove dryer motor (See page 4-34).
2. Remove two 8mm (5/16”) hex head screws
securing the bracket to base of the dryer.
3. Lift the bracket and pull to the right to
remove the two tabs that pass through the
dryer base.

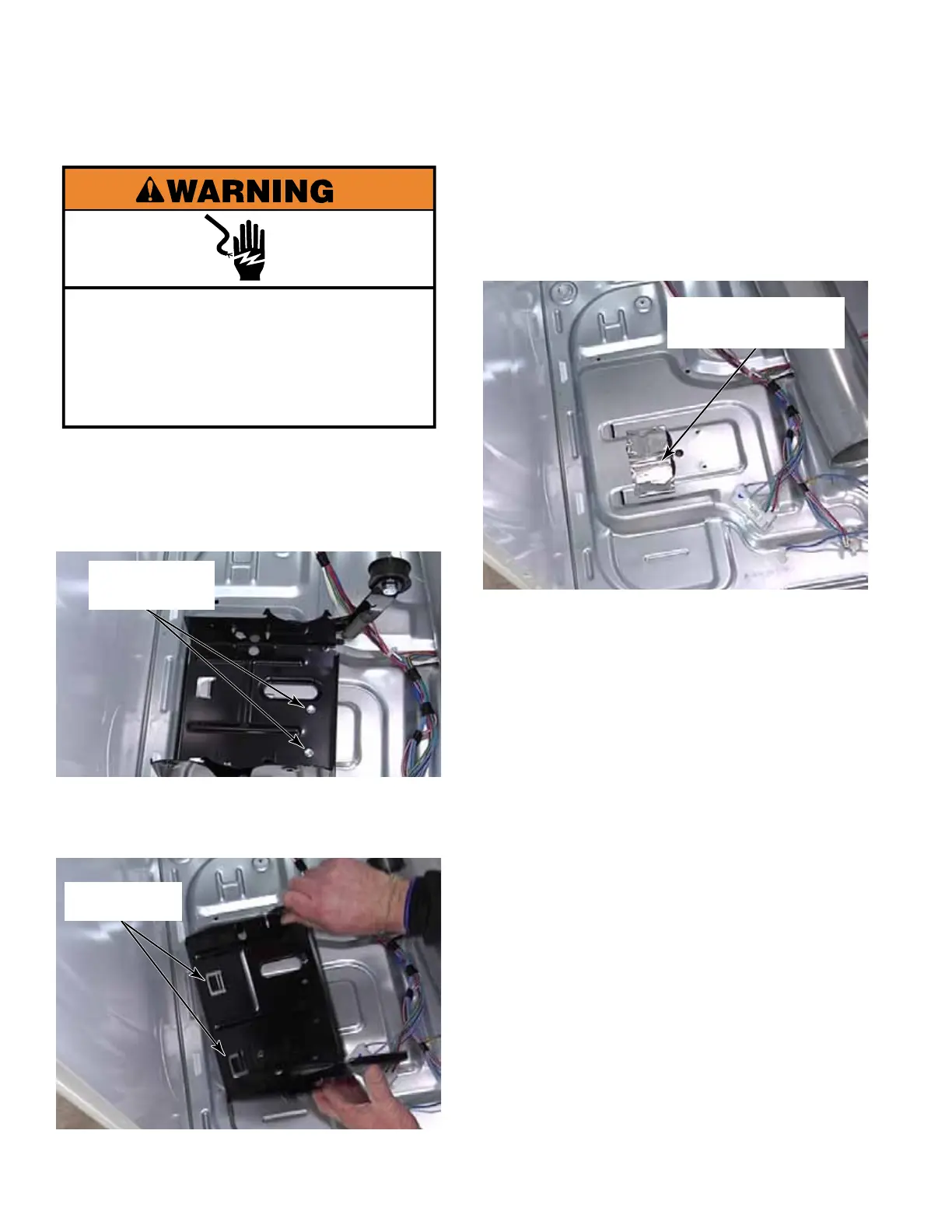

MOTOR BRACKET - DRYER
Two 8mm Hex
Head Screws
Two Tabs
4. Remove the bracket from the dryer.
5. To reduce excess vibration transferred from
the motor bracket to the cabinet, there is an
anti-vibration pad under the motor bracket.
Anti-Vibration Pad
Pt #W10212660
