4-70
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Remove the back panel (See page 4-68).
3. Turn the basket pulley with one hand and
guide belt off basket pulley with the other.
NOTE: Both back braces have been
removed for visual clarity, they do not need
to be removed to service the belt. It is not
recommended to remove both washer back
braces while the dryer is still in place above
the washer. Damage to the washer cabinet
or instability of the Stack Washer/Dryer
may occur if both washer back braces are
removed.

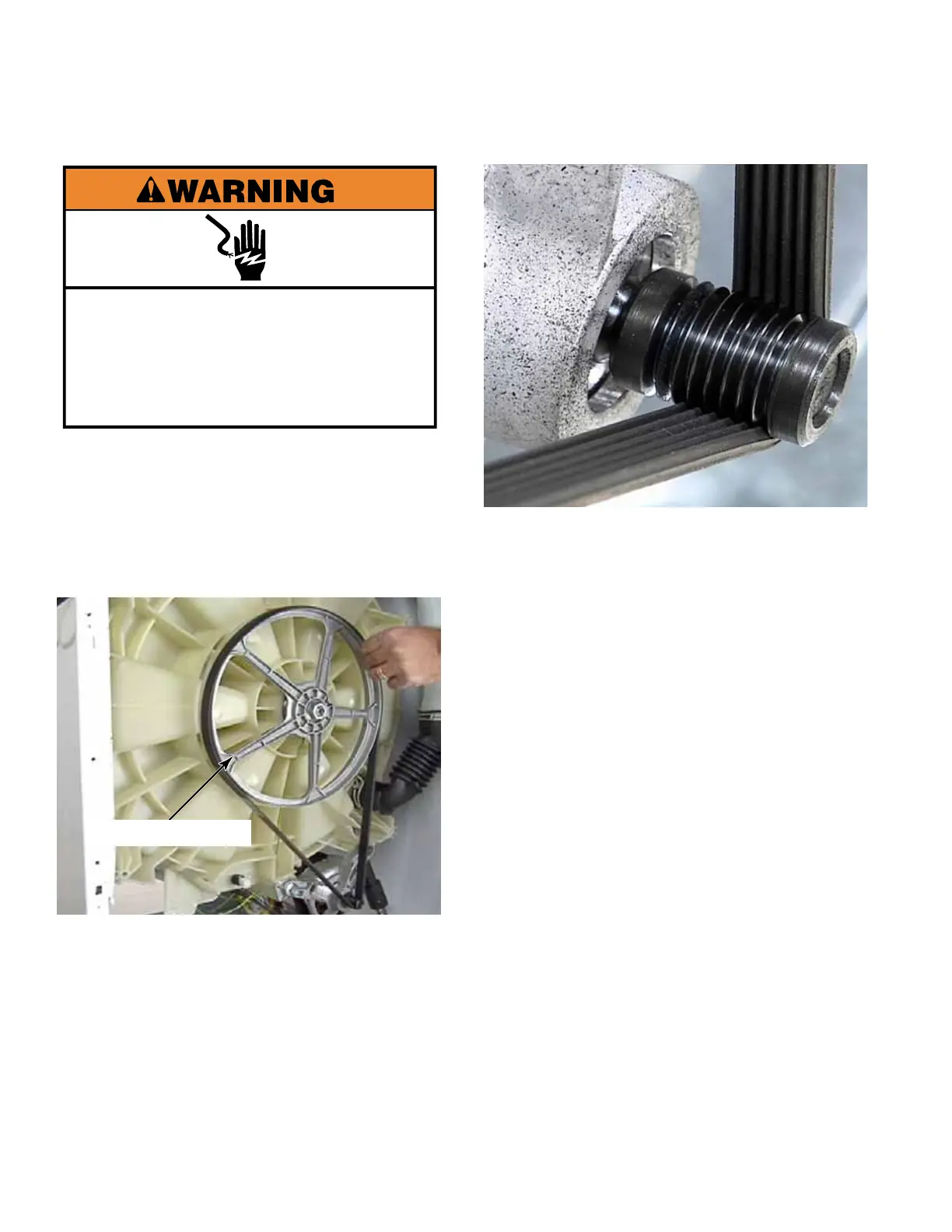

DRIVE BELT
n The drive belt is a ribbed, fiber reinforced
belt.
n The grooves of the belt should ride in the
grooves of the motor pulley starting at the
end furthest away from the motor.
n When reinstalling the belt, wrap the belt
around the bottom side of the motor pulley,
up through the slot cut out in the outer tub,
and roll the belt on around the basket pulley.
Basket Pulley
