Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Remove the back panel (See page 4-68).
3. Squeeze the clamps on the vent tube elbow
and move them toward the middle of the
elbow.
4. Twist the ends of the elbow and pull them
off to remove it from the washer.

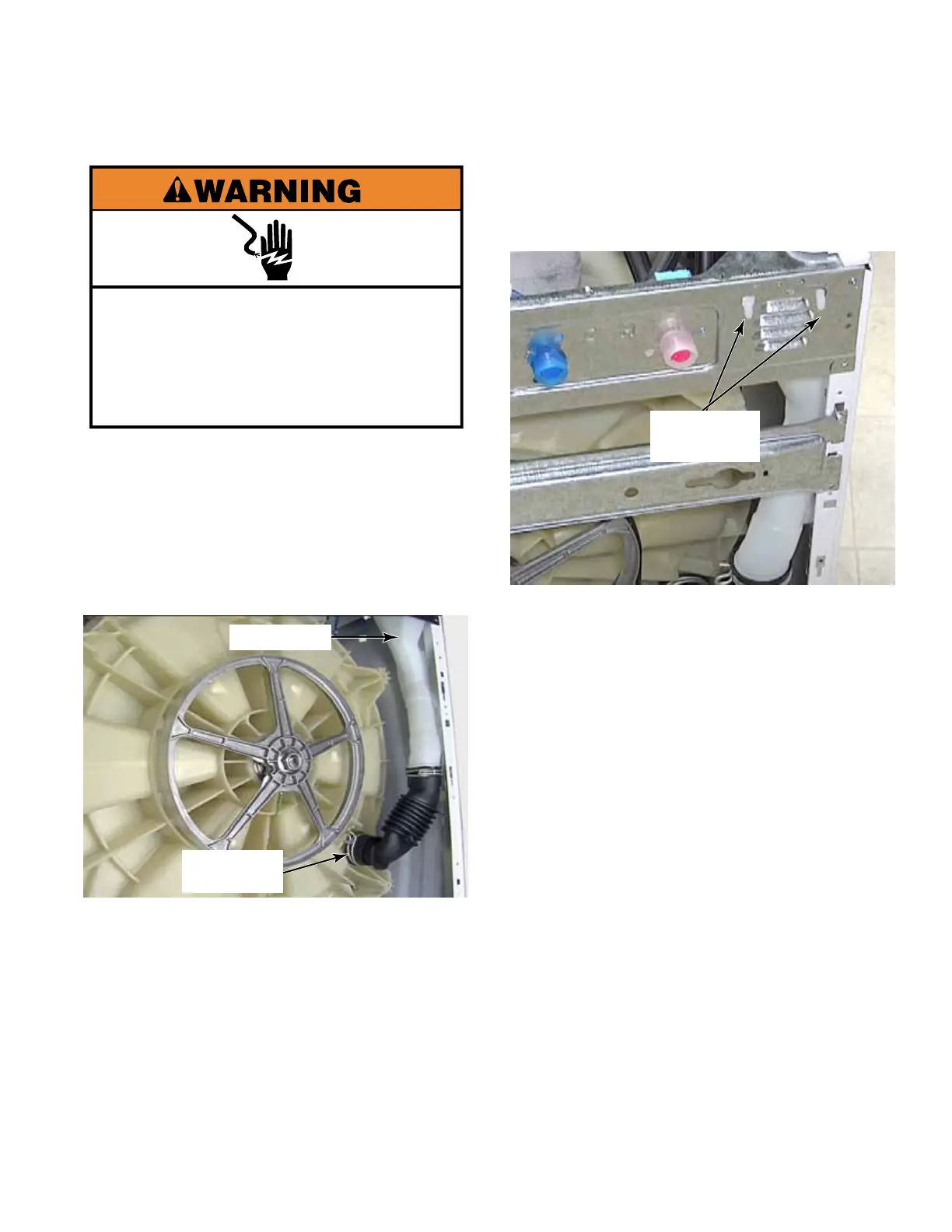

VENT TUBE
Vent Tube
Clamp
Vent Tube
5. To remove the vent tube from the washer,
reach inside from the back of the washer
and lift the vent tube to release 2 tabs from
slots in the top back brace.
2 Vent
Tube Tabs
