1. Open the washer door.
NOTE: The door hinge swings completely
open 180 degrees.
2. Remove two 1/4” hex head screws securing
the washer door to the front panel.
3. Lift the door to release two clips from slots
in the front panel and remove the door and
hinge assembly.

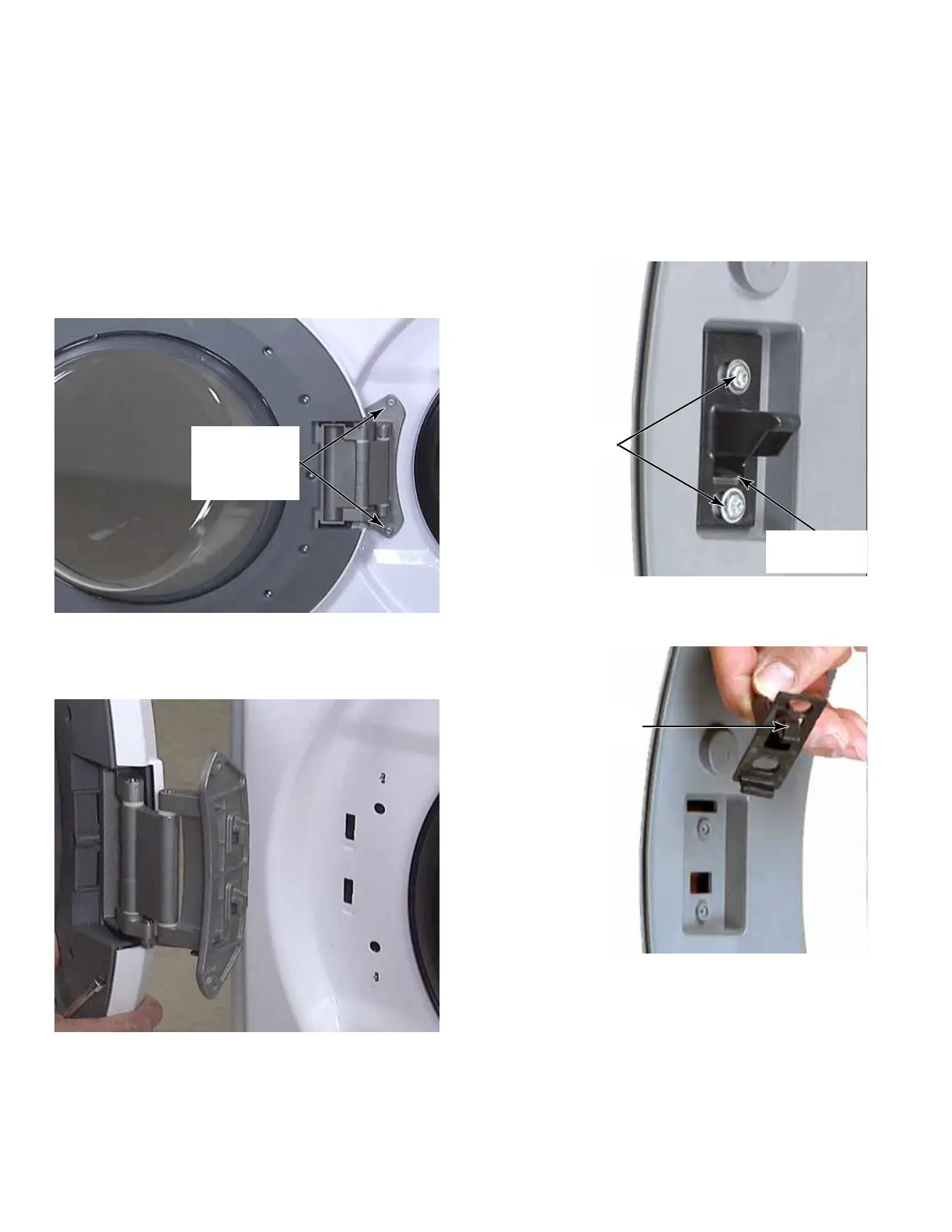

DOOR AND HINGE
ASSEMBLY - WASHER
Two 1/4”
Hex Head
Screws
DOOR HOOK - WASHER
1. Open the washer door.
2. Remove two T-20 screws securing the hook
to the door.
3. Lift the locking tab and rotate the hook up
and out of the slots in the door.
REASSEMBLY NOTE: The door hook
should be able to move freely, back and
forth, when properly installed. The screws
have shoulders to help keep the hook from
becoming too tight. Make sure these screws
are used when reinstalling or replacing the
door hook.
Locking Tab
Two T-20
Screws
Locking Tab
