4-46

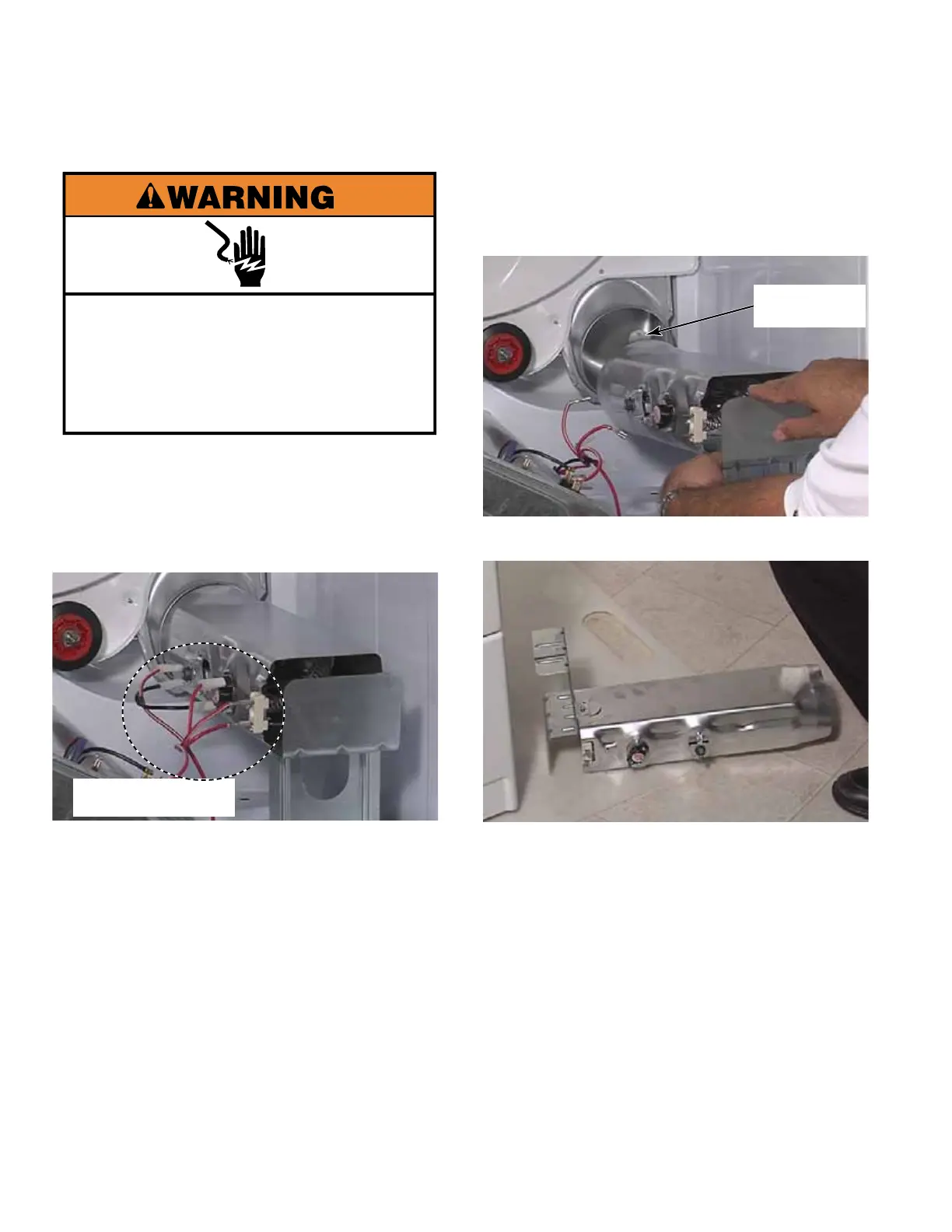

1. Remove the control panel bracket
(See page 4-8).
2. Remove 6 wire connectors from burner high
limit, burner thermal limit and heater coil.
3. Remove the 1/4” hex head screw securing
bracket to bottom of dryer.
HEATING ELEMENT
4. Lift bracket and heater assembly to remove
the bottom edge of the assembly and press
down to release the tab from inside the heat
plenum at the back of the dryer.
5. Remove assembly from the dryer.
Positioning
Tab
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Wire Connectors
