DOOR AND HINGE ASSEMBLY - DRYER
1. The door hinge, on both doors of the Stack
Washer/Dryer, swing completely open, 180
degrees.
2. Open dryer door.
3. Remove four Phillips head screws securing
the door and hinge assembly to the front
panel of the dryer.
4. Support the door when removing the last
screw.
5. Remove the door and hinge assembly from
the dryer.
6. There is a locating tab on the back of the
hinge that fits into a hole in the front panel.

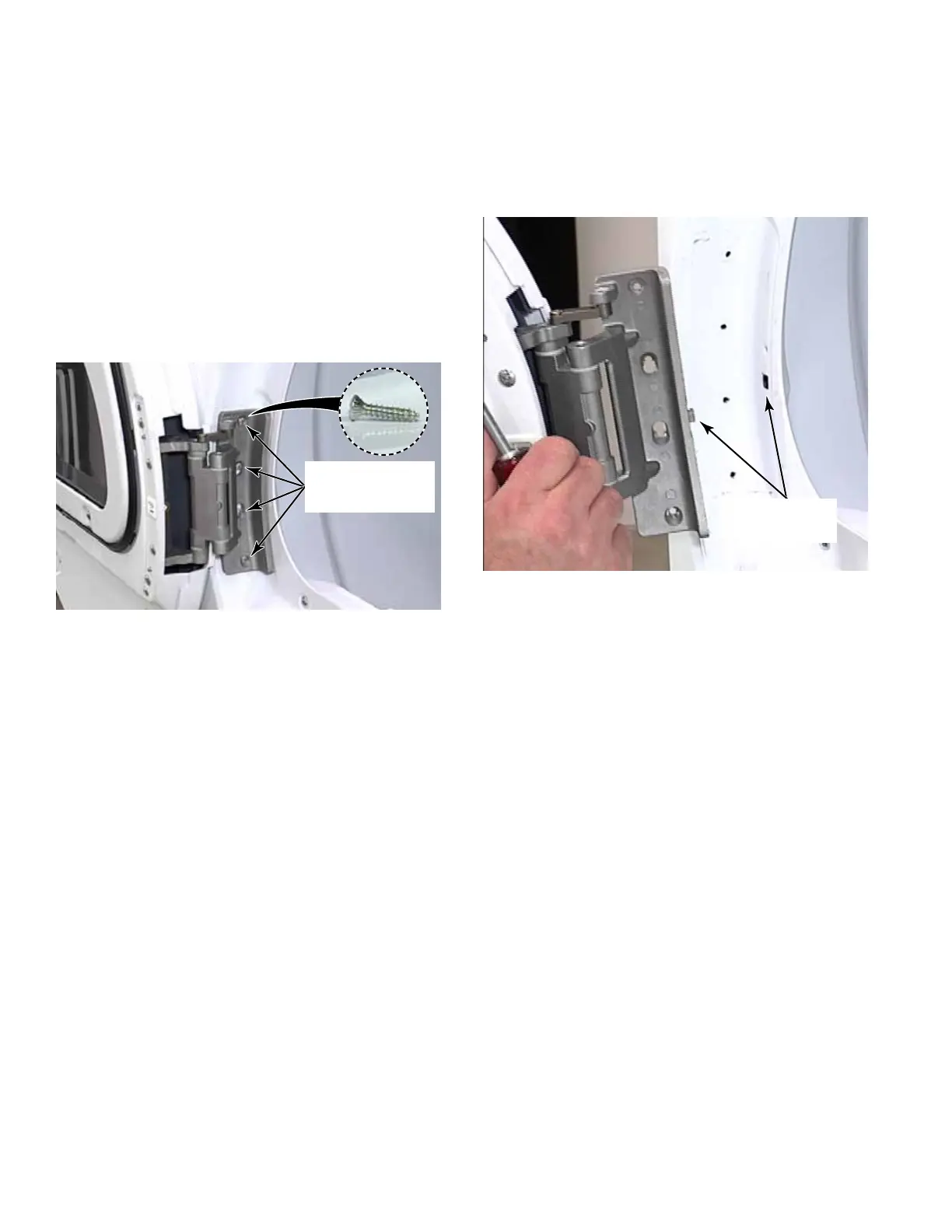

4 Phillips
Head Screws
Tab & Slot
To Next Page
