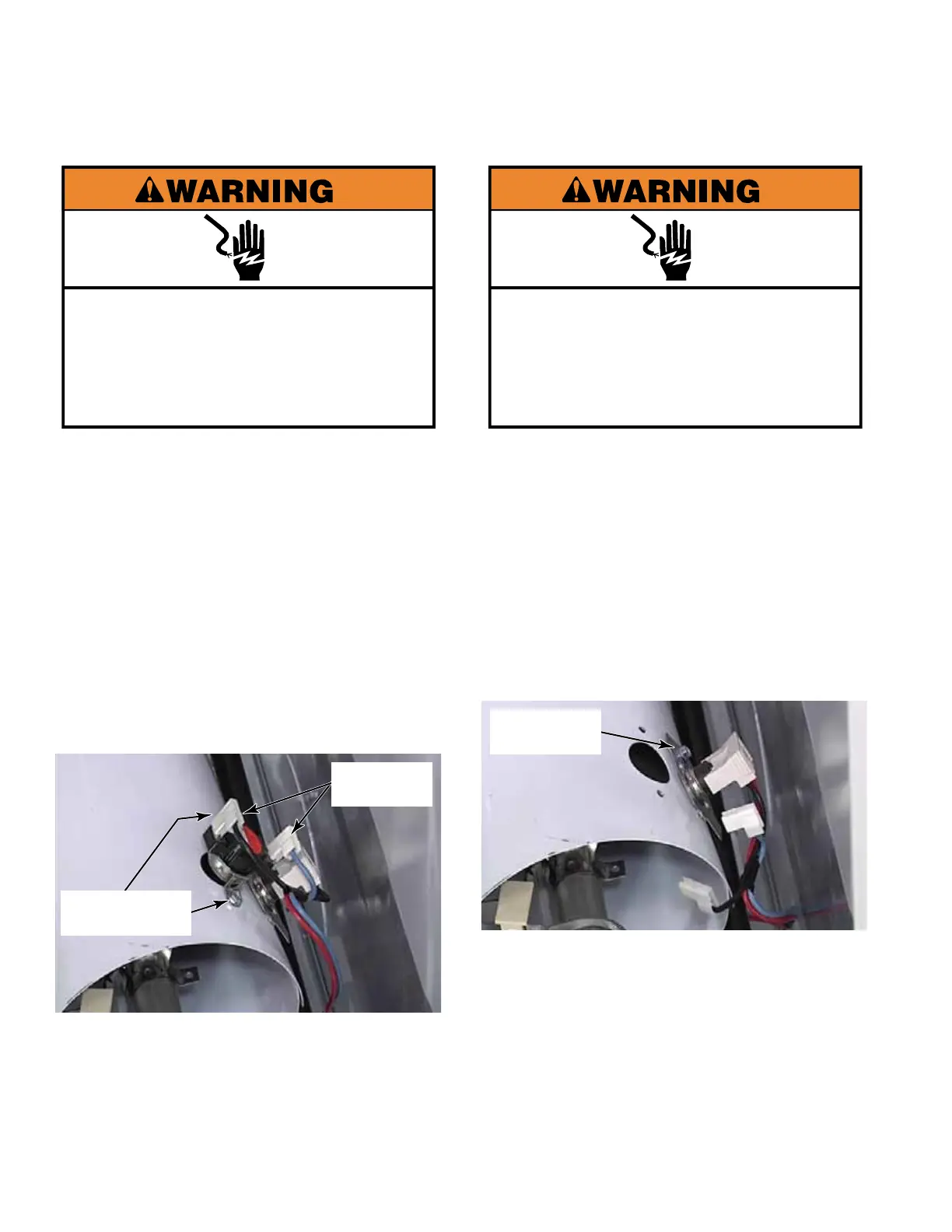

Maytag MLE22PD - Burner High Limit; Burner Thermal Limit

4-42
1. Remove the control panel bracket
(See page 4-8).
2. Remove two wire connectors.
3. Remove two 8mm (5/16”) hex head screws
and remove burner high limit.
NOTE: The burner high limit and burner
thermal limit should be ordered and
replaced as a set. The burner high limit
is resettable and cycles to keep the
temperature from getting too hot in the
burner.
BURNER HIGH LIMIT
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Two 8mm Hex
Head Screws
Two Wire
Connectors
1. Remove the control panel bracket
(See page 4-8).
2. Remove the 1/4” hex head screw and lift to
release the tab on the other side.
3. Remove the wire connector from the spade
terminals.
NOTE: The burner thermal limit is not
resettable, it will disable the heat if it trips.
TECH TIP: If the burner thermal limit is being
replaced, the burner high limit should be
replaced as well, since the burner high limit
should have shut the heat off before the dryer
reached the temperature at which the burner
thermal limit would trip.
BURNER THERMAL LIMIT
1/4” Hex
Head Screw
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
