Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Remove the washer front panel
(See page 4-58).
3. Loosen the Phillips head screw on the
clamp securing back of bellow to outer tub.

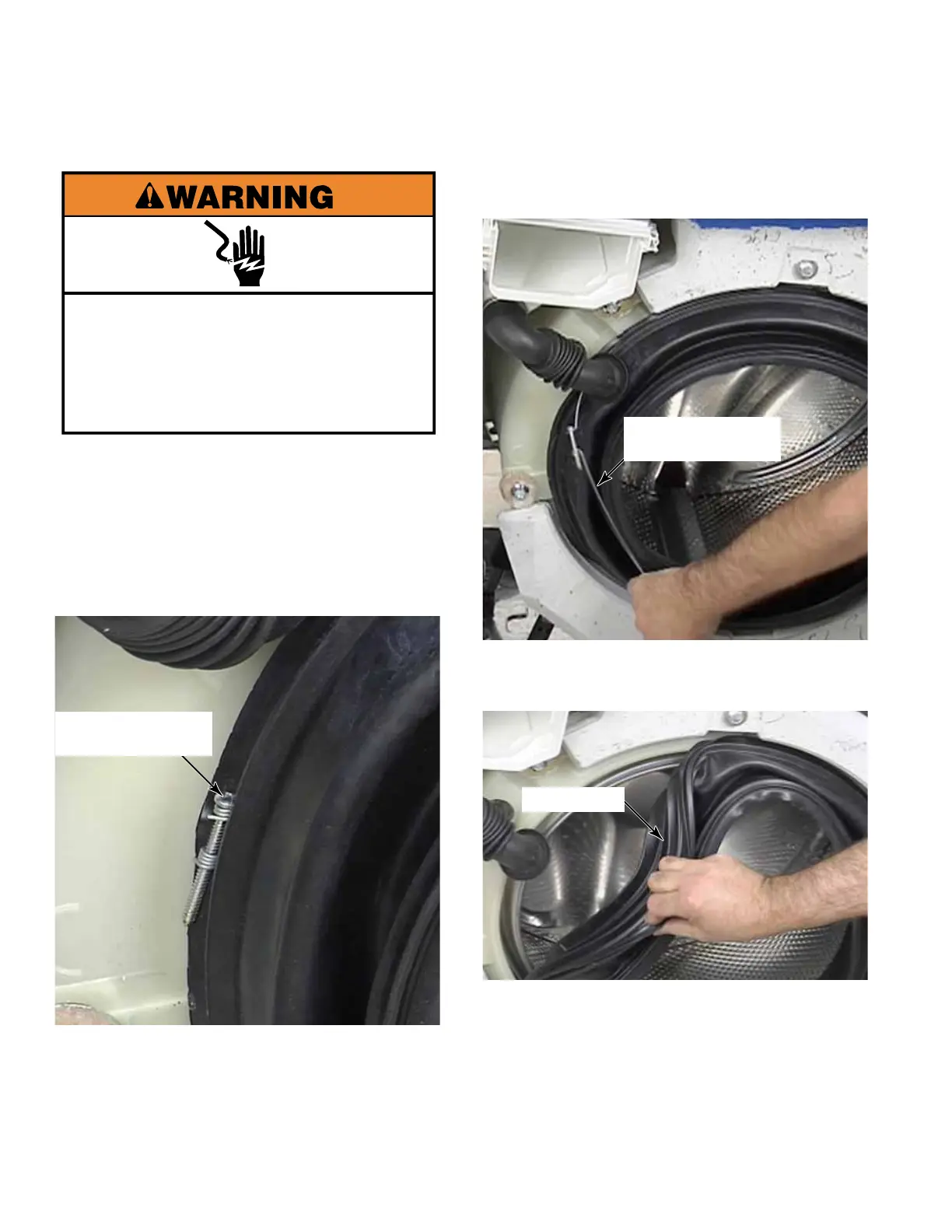

BELLOW
Bellow Retaining
Clamp Screw
4. Remove the bellow retaining clamp from
around the bellow.
5. Peel the bellow off the flange of the outer
tub to remove it.
NOTE: There is a deflector tab at the top
center of the bellow that helps keep clothes
from getting between the bellow and the
glass.
Bellow Retaining
Clamp
Bellow
To Next Page
