4-6

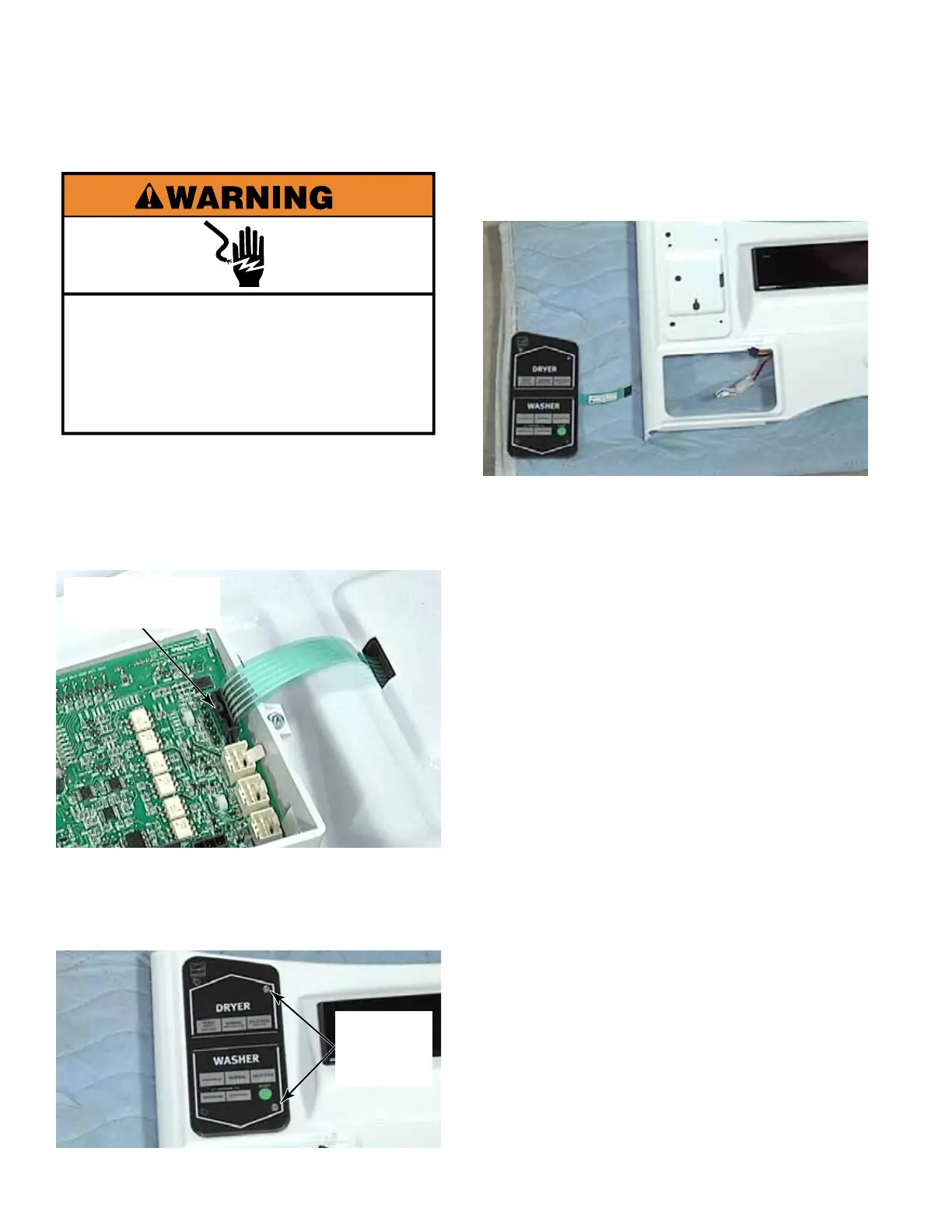

1. Open the control panel (See page 4-3).
2. Press the locking tab and remove the
keypad ribbon connector from the control
board.
3. Remove the remaining two T-20 security
screws securing the keypad to the control
panel. Support the keypad so it will not fall
when the last screw is removed.
4. Remove the keypad assembly from the
front of the control panel cover.
KEYPAD ASSEMBLY
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Two T-20
Security
Screws
Ribbon Connector
Locking Tab
To Next Page
