4. Pull the bottom edge out and slide the panel
down from behind the lip at the top edge to
remove the panel.
5. Components located behind the back panel
of the washer are:
n Drive belt
n Basket pulley
n Vent tube and vent
n Temperature sensor
n Motor
n Air gap dampers
n Earth switch
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
NOTE: there are two cutouts on each
side of the back panel where the 1/4” hex
head screws do not need to be removed to
remove the back panel.
3. Remove 13 1/4” hex head screws securing
the back panel to the washer. The screw in
the center hole is shorter than the rest of the
screws.

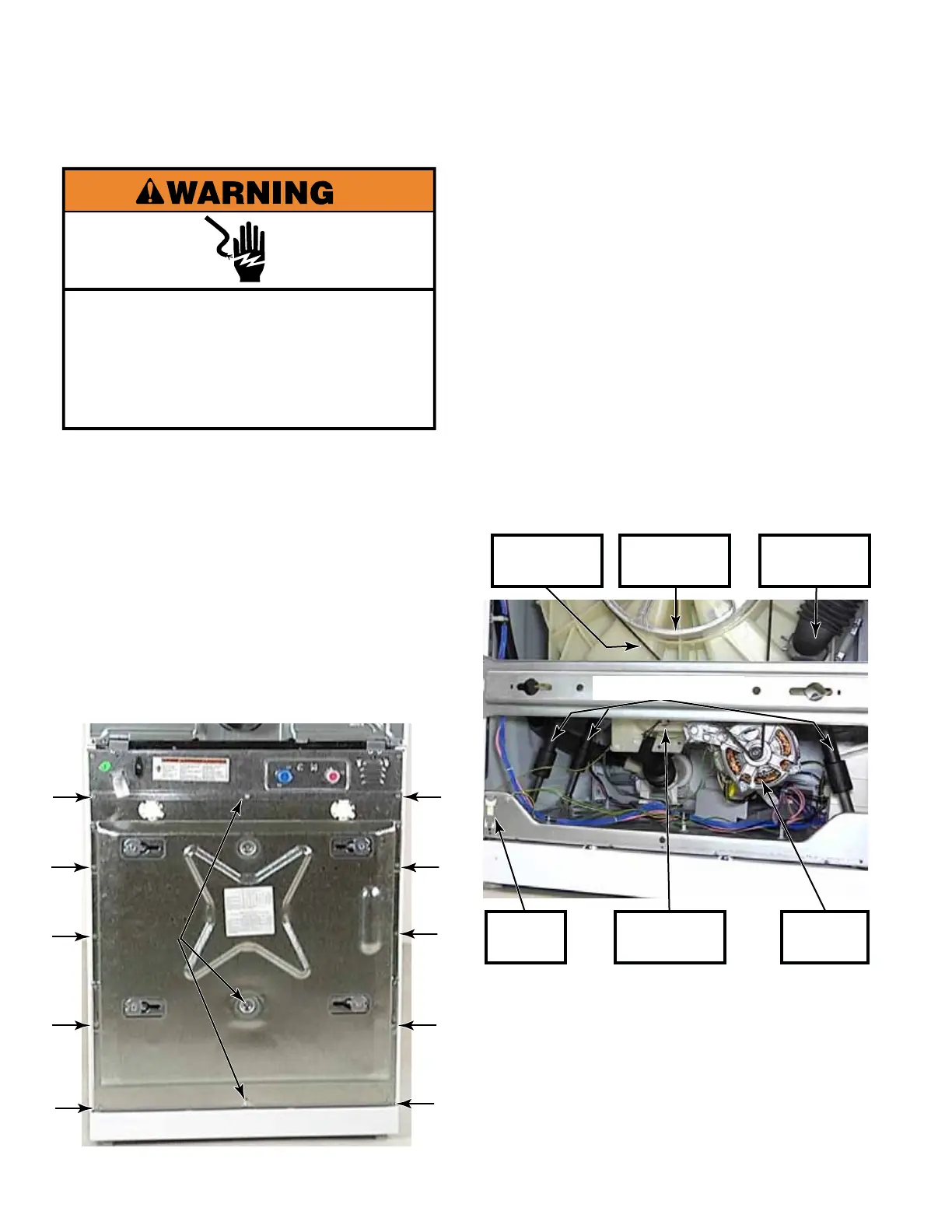

BACK PANEL - WASHER
Drive
Belt
Basket
Pulley
Vent Tube
& Vent
Motor
Temperature
Sensor
Earth
Switch
Air Gap Dampers
