4. Place hook on bottom edge of the service
switch bracket into metal hoop to hold the
control panel open in the service position.
5. To remove control panel, disconnect the
wire connectors from the control board.
6. Lift the control panel to release the hook
from the hoop on the control panel bracket.
7. Remove the control panel and place it on a
covered work surface.
CONTROL PANEL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

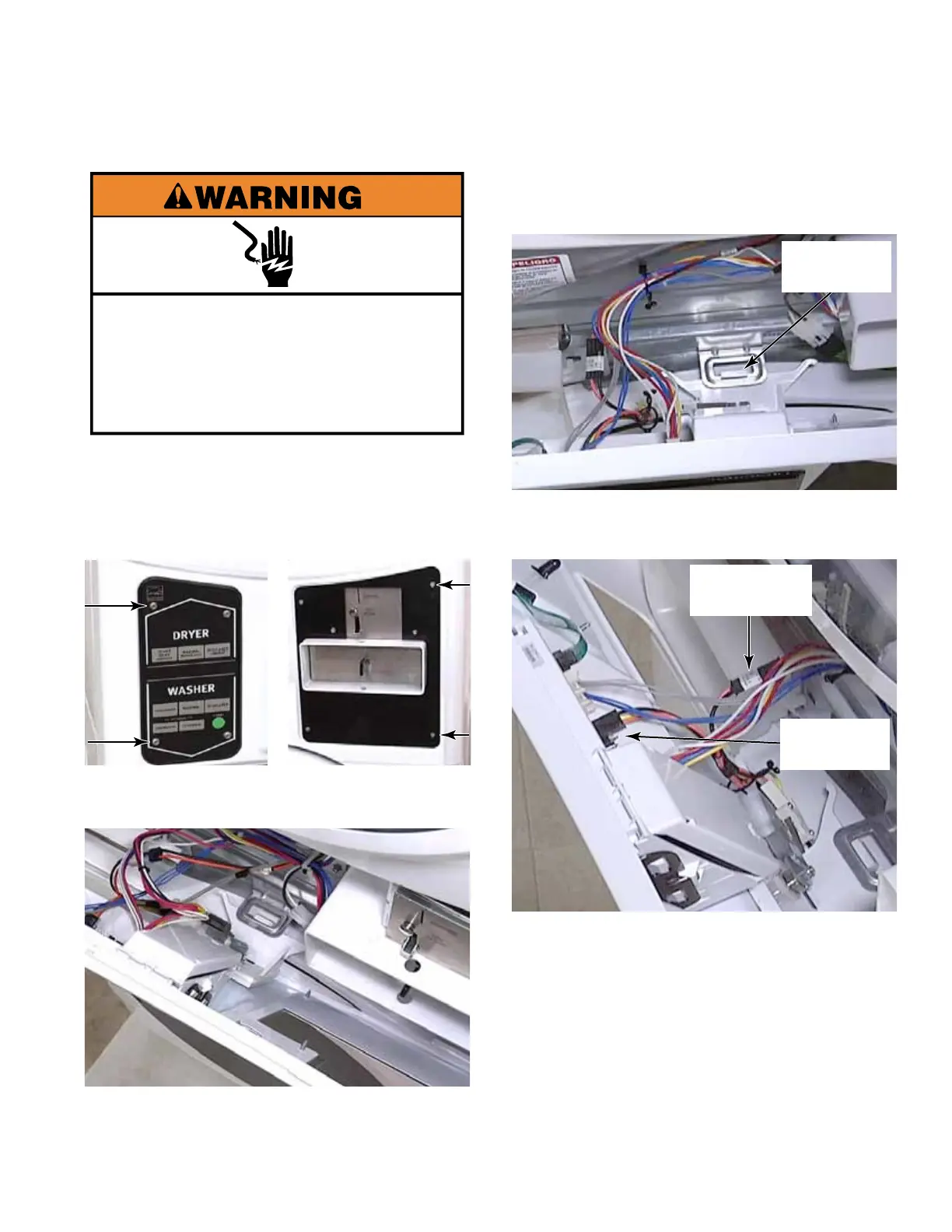

1. Remove the chemical dispenser drawer
(See page 4-1).
2. Remove four T-20 security screws, two from
the left and right edges of the control panel.
3. Pull the control panel forward and tilt the top
edge down.
Control
Board
Service Switch
Connector
Clip and
Metal Hoop
To Next Page
