4-9

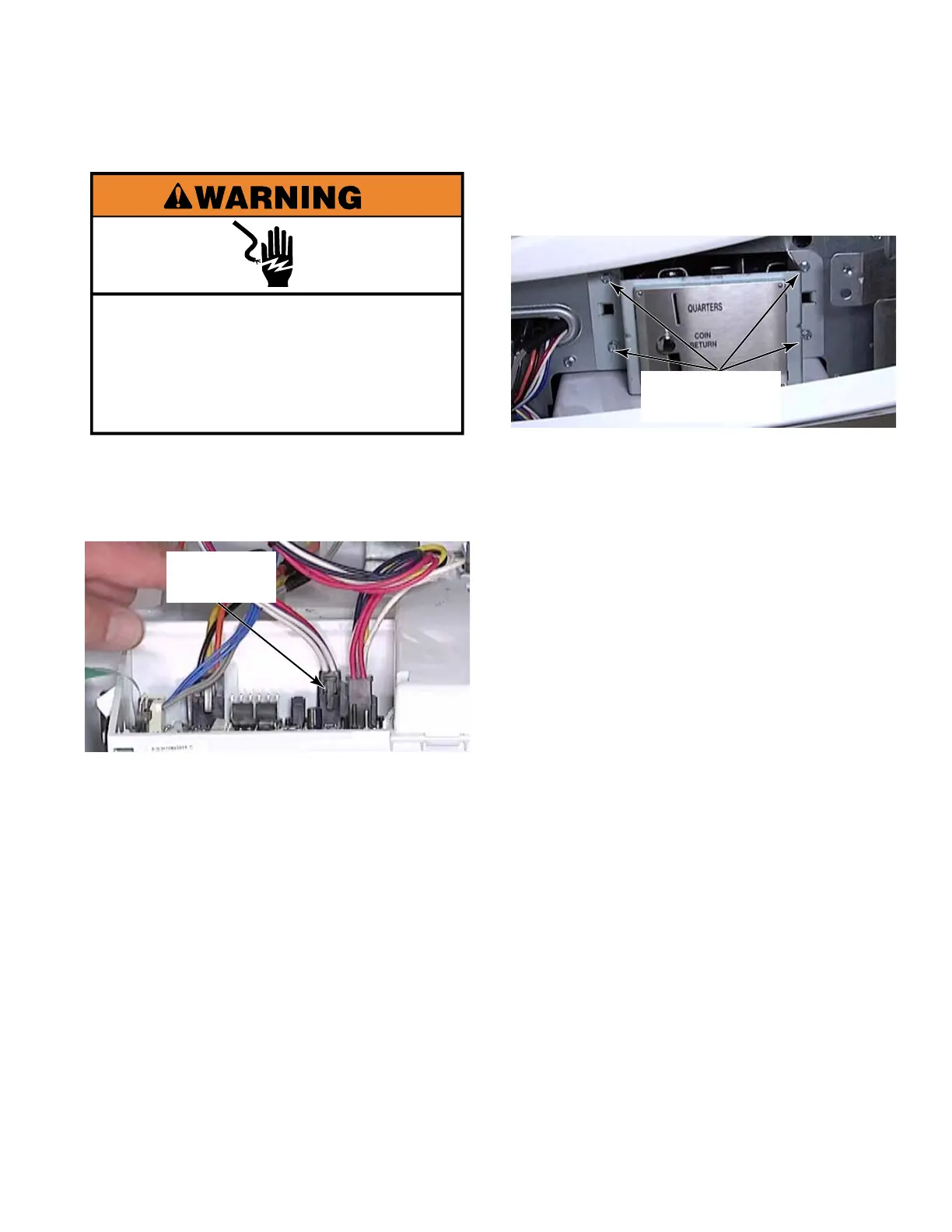

1. Open the control panel (See page 4-3).
2. Press locking tab and disconnect coin drop
wire connector from control board.
3. Release the wires from the wire clips inside
the control panel.
COIN DROP
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Four 1/4” Hex
Head Screws
Coin drop
Connector
4. Remove four 1/4” hex head screws
securing the coin drop mounting bracket to
the control panel bracket.
5. Pull the coin drop and bracket out while
pulling the wires through the hole in the
control panel bracket.
To Next Page
