4-25
5. The belt can be reinstalled without
removing the drum from the dryer.
When reinstalling the belt, make sure the
ribs of the belt are facing the drum.
6. Reach in under the drum and wrap the belt
around the motor pulley. Lift the idler pulley
and wrap the belt around the idler pulley
wheel. Release the idler pulley to apply
tension to the belt.
7. Turn the drum to align the belt travel.
1. Remove the dryer front bulkhead
(See page 4-23).
2. Reach in under the drum and lift the idler
pulley to release tension on the belt.
3. Remove the belt from the motor pulley and
then remove it from the idler pulley.
4. Remove the belt from the dryer.
NOTE: The belt is a multi-ribbed belt.

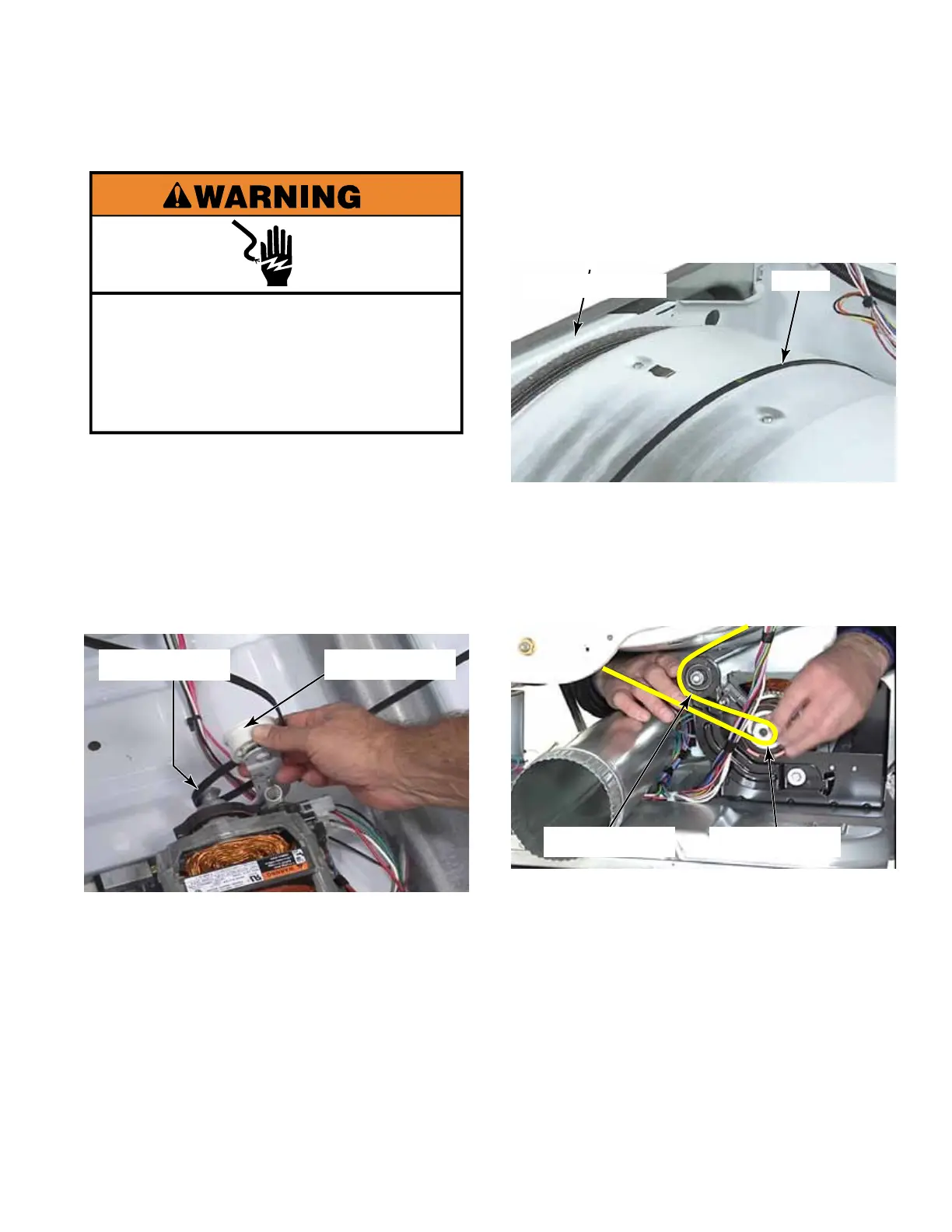

BELT - DRYER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Idler Pulley
Motor Pulley
Back Bulkhead
Belt
Motor PulleyIdler Pulley
To Next Page
