4-58
6. Push the bellow into the cabinet opening.
7. Remove two 1/4” hex head screws, that
were hidden by the washer toe panel,
securing the bottom of the front panel to the
washer side panels.
8. Support the front panel when removing the
top screws.
9. Remove two 1/4” hex head screws, that
were hidden by the control panel cover,
securing the top of the front panel to the
washer side panels.
10. Remove the front panel from the washer.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Remove the control panel.
(See page 4-3).
3. Remove the toe panel (See page 4-61).
4. Remove two T-20 screws securing the door
lock assembly to the front panel.
5. Remove the spring loaded retainer that
holds the bellow to the washer front.

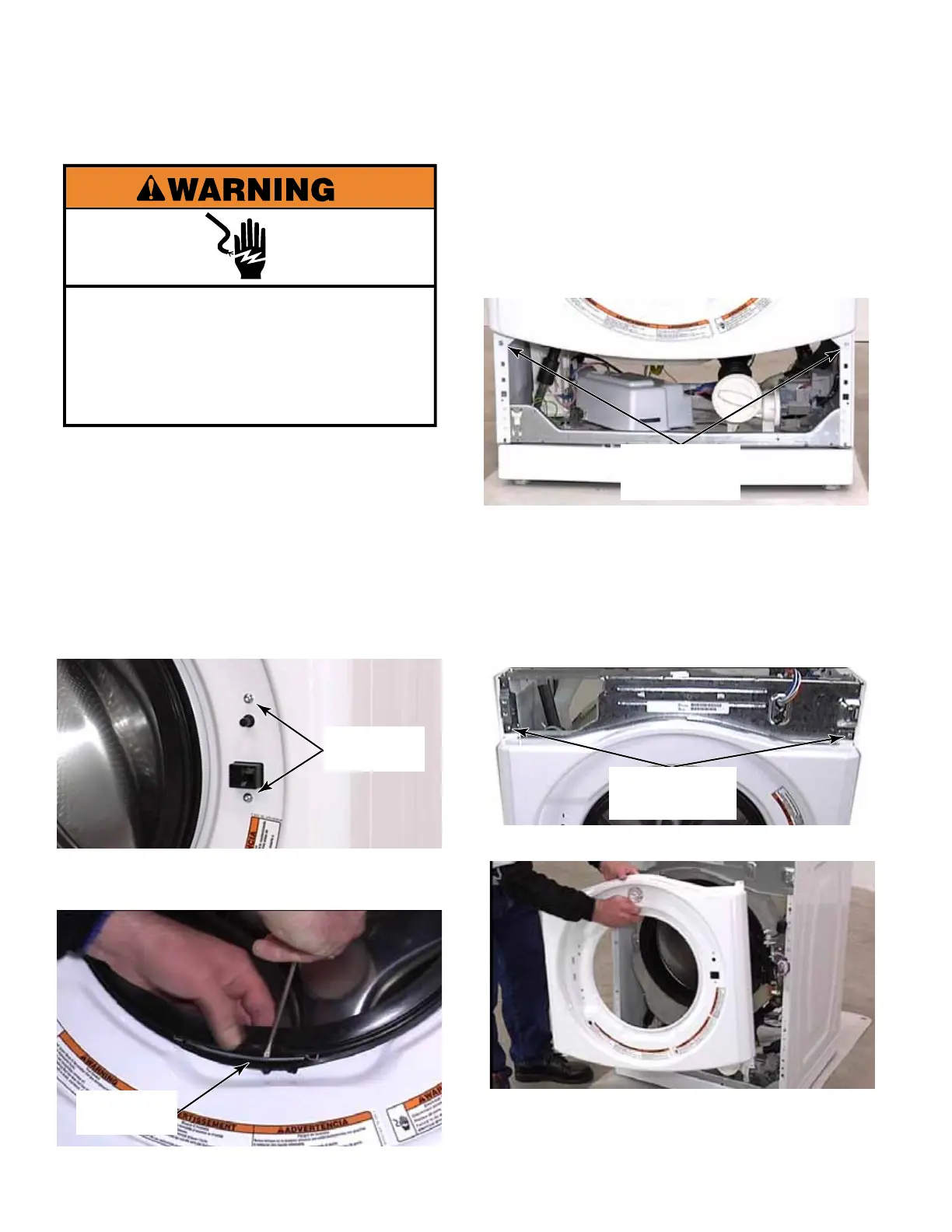

FRONT PANEL - WASHER
Two 1/4” Hex
Head Screws
Two 1/4” Hex
Head Screws
Two T-20
Screws
Bellow
Spring
To Next Page
