4-34
6. Remove the back motor clip the same way.
7. Lift the motor out of the cabinet with the
speed increaser attached.
8. To remove the speed increaser, remove
the belt by rolling it off while pulling the belt
away from the pulley.
9. Remove the two 8mm (5/16”) hex head
screws securing the speed increaser to the
front of the motor.
1. Remove dryer drum (See page 4-29).
2. Remove blower wheel (See page 4-22).
3. Remove the motor wire harness. Lift the
locking tabs on the top and bottom with a
flat blade screwdriver. Pull the plug off the
motor connector.
4. Remove the two blue wires, with spade
connectors, that go to the belt switch. The
1/4” spade terminal is connected to the
motor overload. The 3/16” spade terminal
is connected to terminal four of the motor
centrifugal switch.
5. Remove the two motor clips. Place a 8mm
(5/16”) nut driver over the upward pointing
end tip of the mounting clip. Press the tool
handle down and toward the motor until the
clip pops off the hook of the bracket.

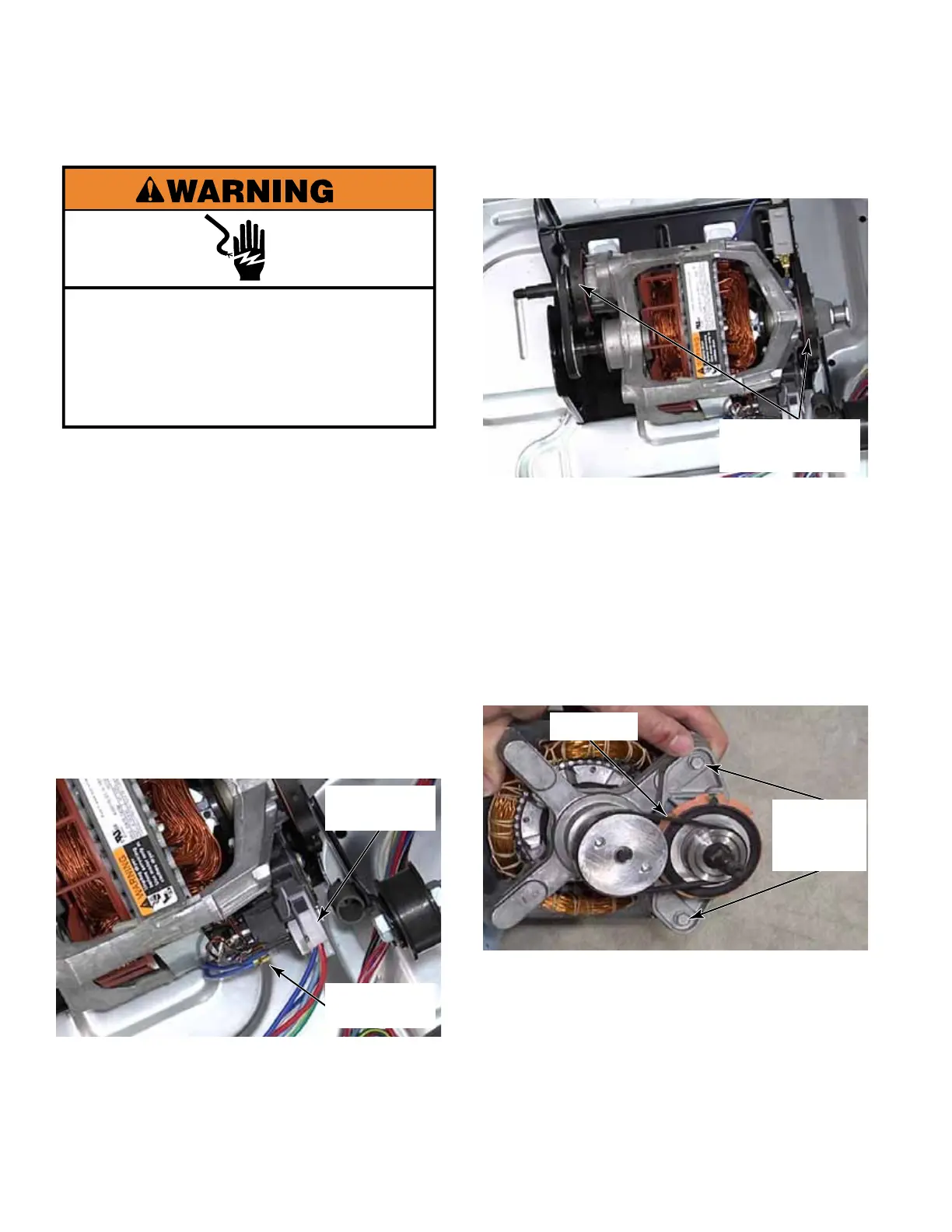

MOTOR AND SPEED INCREASER - DRYER
Motor Bracket
Clips
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Motor Wire
Harness
Two Blue
Wires
Two 8mm
Hex Head
Screws
Belt
To Next Page
