4-55
6. Reach in behind the front panel and
squeeze the tub dispenser outlet hose. Pull
the flange out of the hole in the outer tub.
7. Remove three T-20 screws from the washer
front support bracket securing the top and
front of the chemical dispenser.
NOTE: These screws have higher, wider
spaced threads that are made for holding
tightly to plastic. The head shape on these
three screws is also different, a round flat
top, for easy identification.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove dryer from stack (See page 4-11).
4. Use a small flat blade screwdriver in the
spring at the bottom edge of the bellow.
Pull to expand the spring and remove the
retaining wire from the groove securing the
bellow to the washer front panel.
5. Peel the bellow off the edge of the front
panel and push it into the cabinet opening in
the upper left corner.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

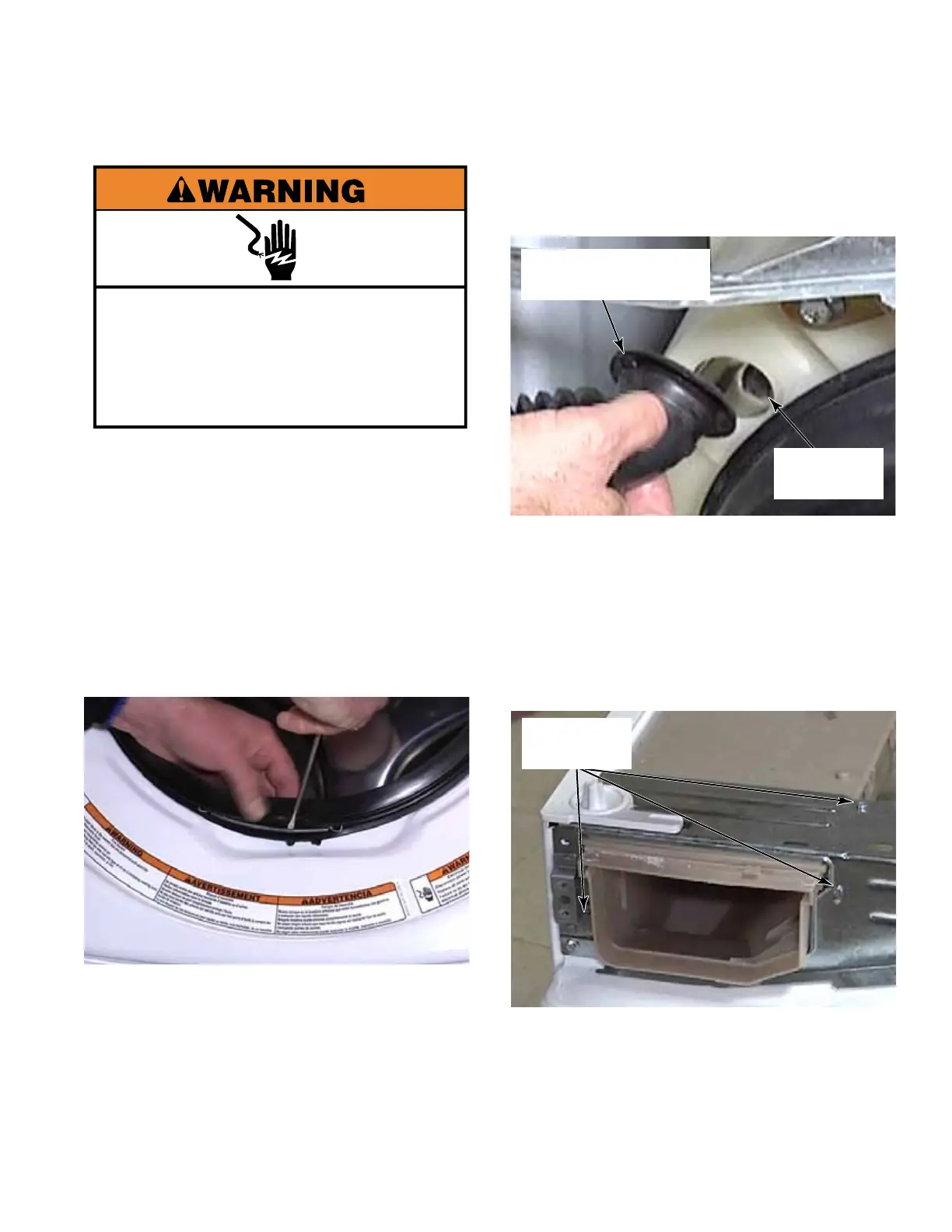

CHEMICAL DISPENSER ASSEMBLY
Three T-20
Screws
Hole In
Outer Tub
Flanged End Of
Dispenser Outlet Hose
To Next Page
