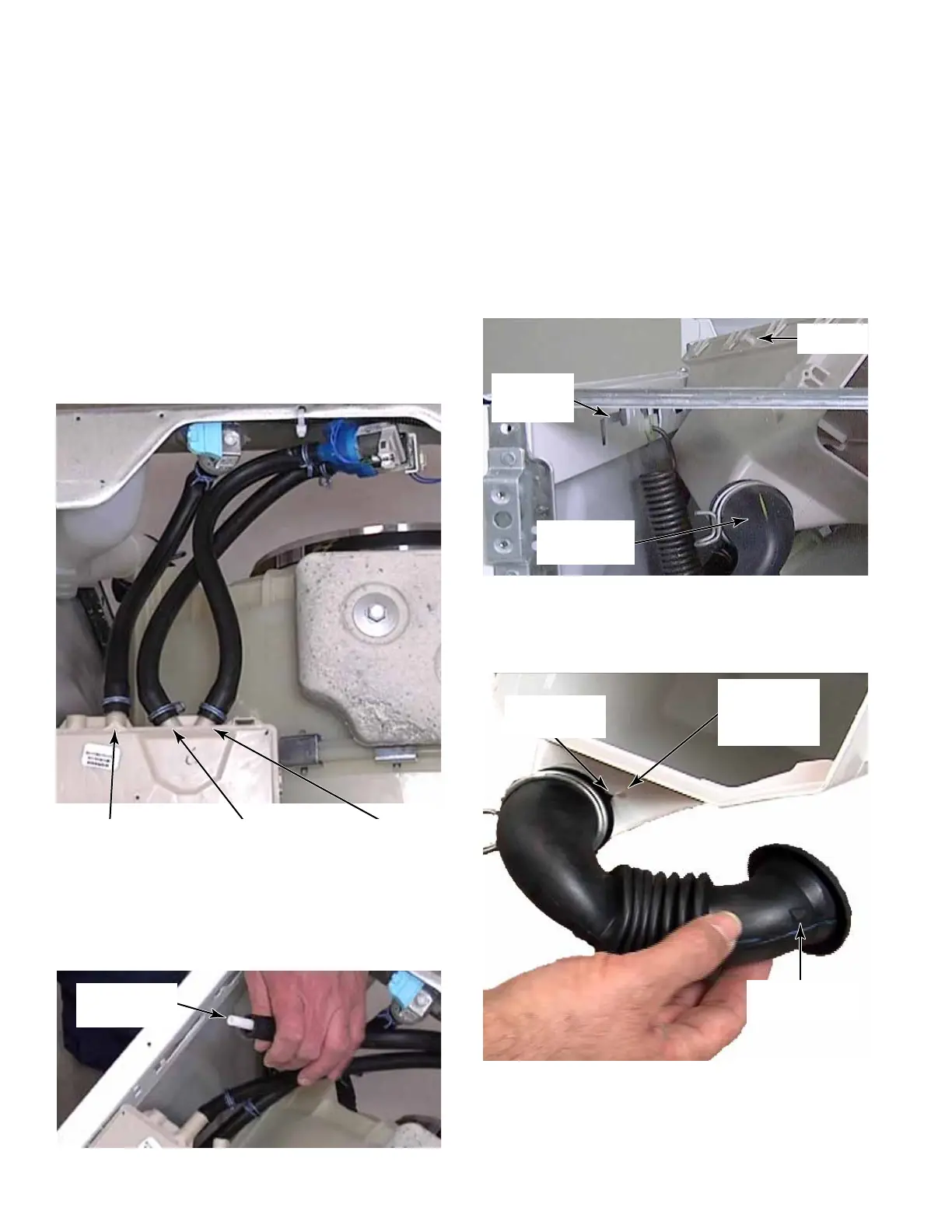

8. Remove the hoses coming from the water
inlet valves. Squeeze each clamp and move
it down the hose. Pull each hose off the
back of the chemical dispenser.
NOTE: Make sure the hoses are reinstalled
on the same connectors as they are
removed from. The left hose goes to the
hot water valve number 1. The middle hose
goes to the lower cold water valve number
3. The hose on the right goes to the upper
cold water valve number 2.
9. There is a flow restrictor in the end of each
hose. Remove it for cleaning, if necessary,
by pulling it out of the end of the hose.
10. Reinstall a restrictor, if removed, before
reconnecting a hose.
11. Slide the chemical dispenser toward the
back of the washer to release the tabs
securing it to the left side panel and remove
the chemical dispenser.
NOTE: There are alignment marks on the
hose and dispenser as well as on the outer
tub to assist with proper alignment of the
dispenser outlet hose during reinstallation.
Arrow On
Flanged End
Line On
Chemical
Dispenser
Arrow On
Tube
Lower Cold
Valve 3
Upper Cold
Valve 2
Hot Water
Valve 1
Tab
Keyhole
Slot
Dispenser
Outlet Hose
Flow
Restrictor
