Maytag MLE22PD - Control Board Connectors

4-4
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before
operating.

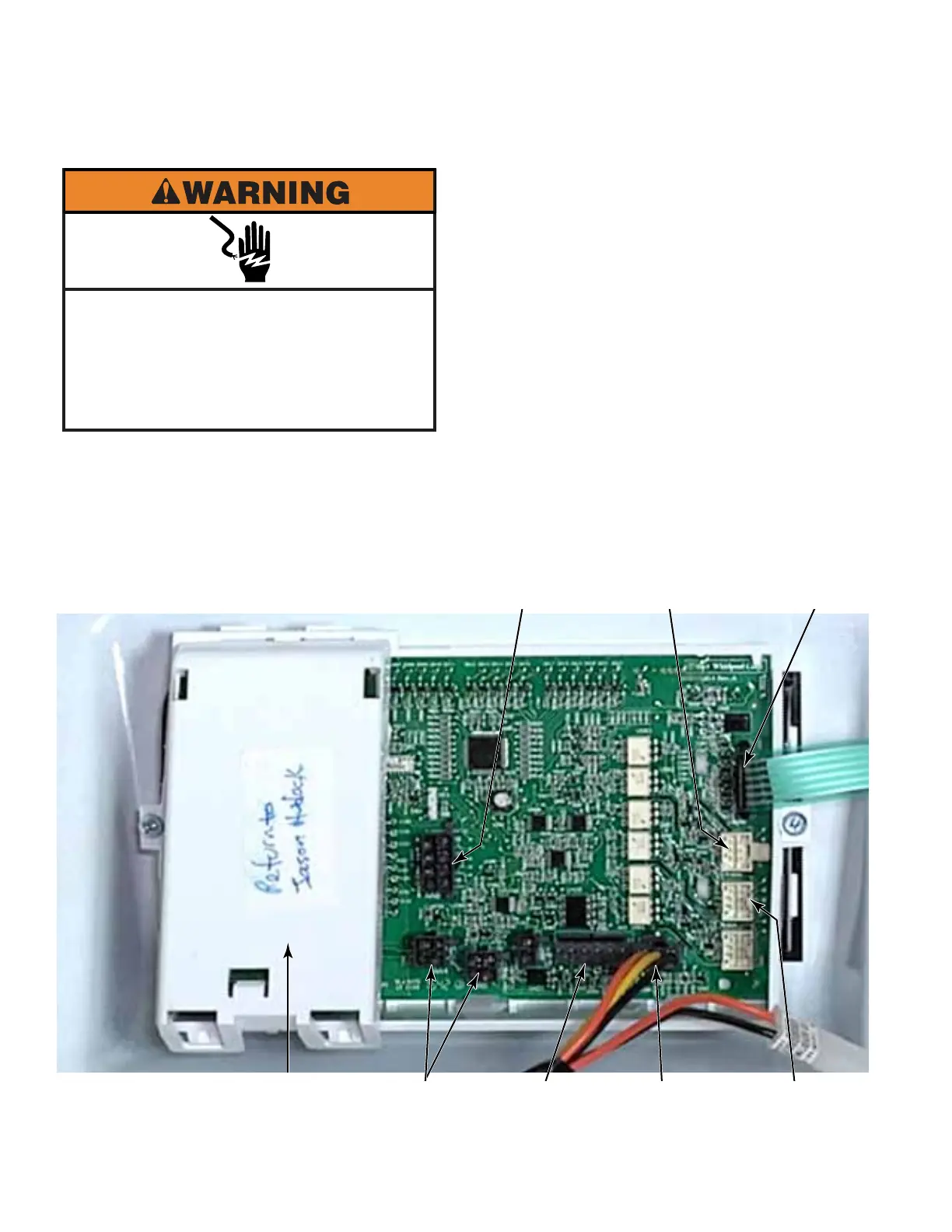

CONTROL BOARD CONNECTORS
Keyad
Ribbon
Connector
Washer CCU
Communication
Cable
Power
Supply From
Transformer
Dryer CCU
Communication
Cable
Service &
Vault Switch
Wires
Coin Drop
Connectors
Card
Reader
Connector
Atlas
Board
1. Open the control panel (See page 4-4).
2. Disconnect the wire connectors from the
control board.
