4-74
1. Unplug washer or disconnect power.
2. Remove the toe panel (See page 4-61)
or
Remove the back panel (See page 4-68).
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

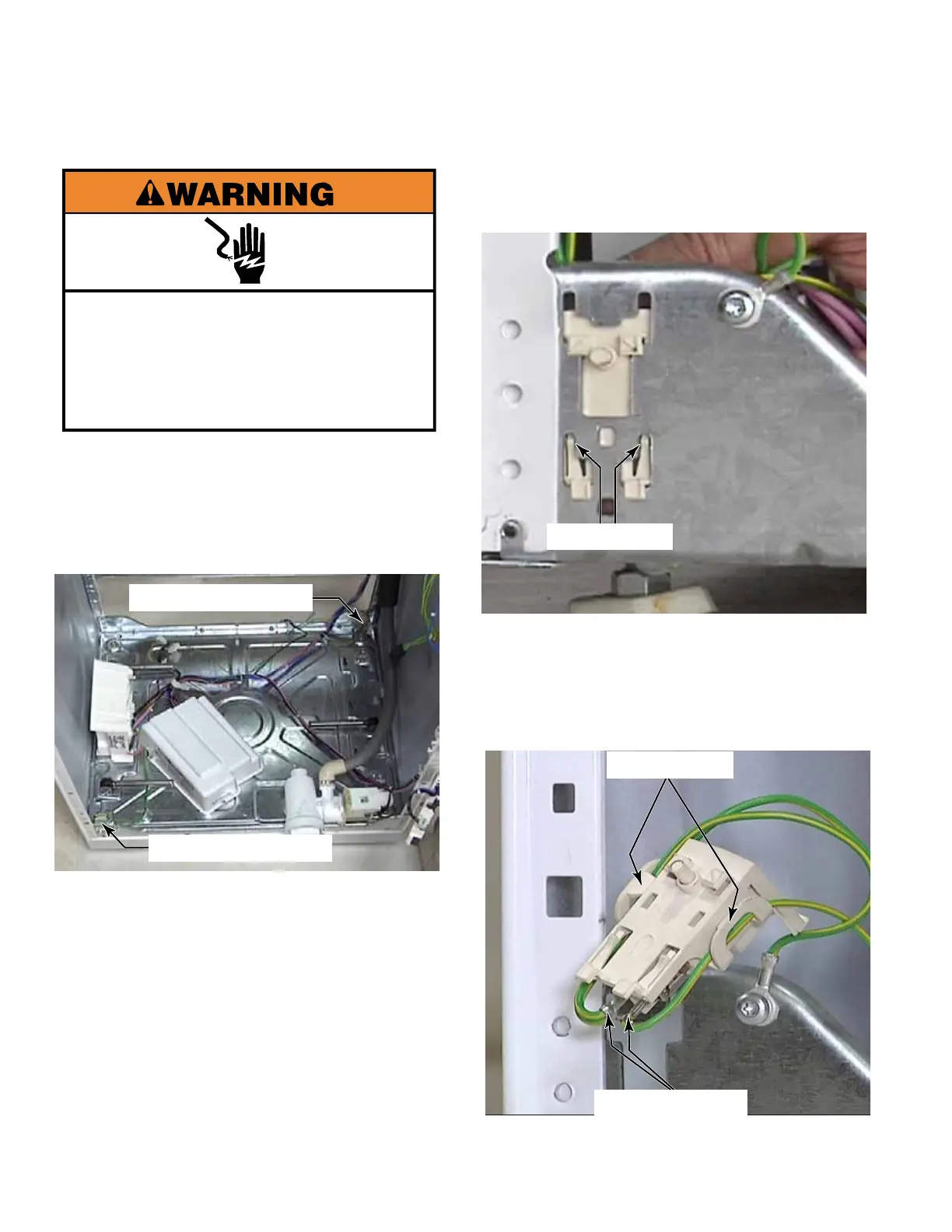

EARTH SWITCH
Front Earth Switch
Back Earth Switch
3. Use a flat blade screwdriver to press in
on the 2 locking tabs in the bottom slots to
release the switch.
4. Slide the switch up and pull it out of the
slots to remove it.
5. Release the 2 wires from the clips on
each side of the earth switch and pull the
connectors off the spade terminals.
Locking Tabs
Wire Connectors
Wire Clips
To Next Page
