4-50

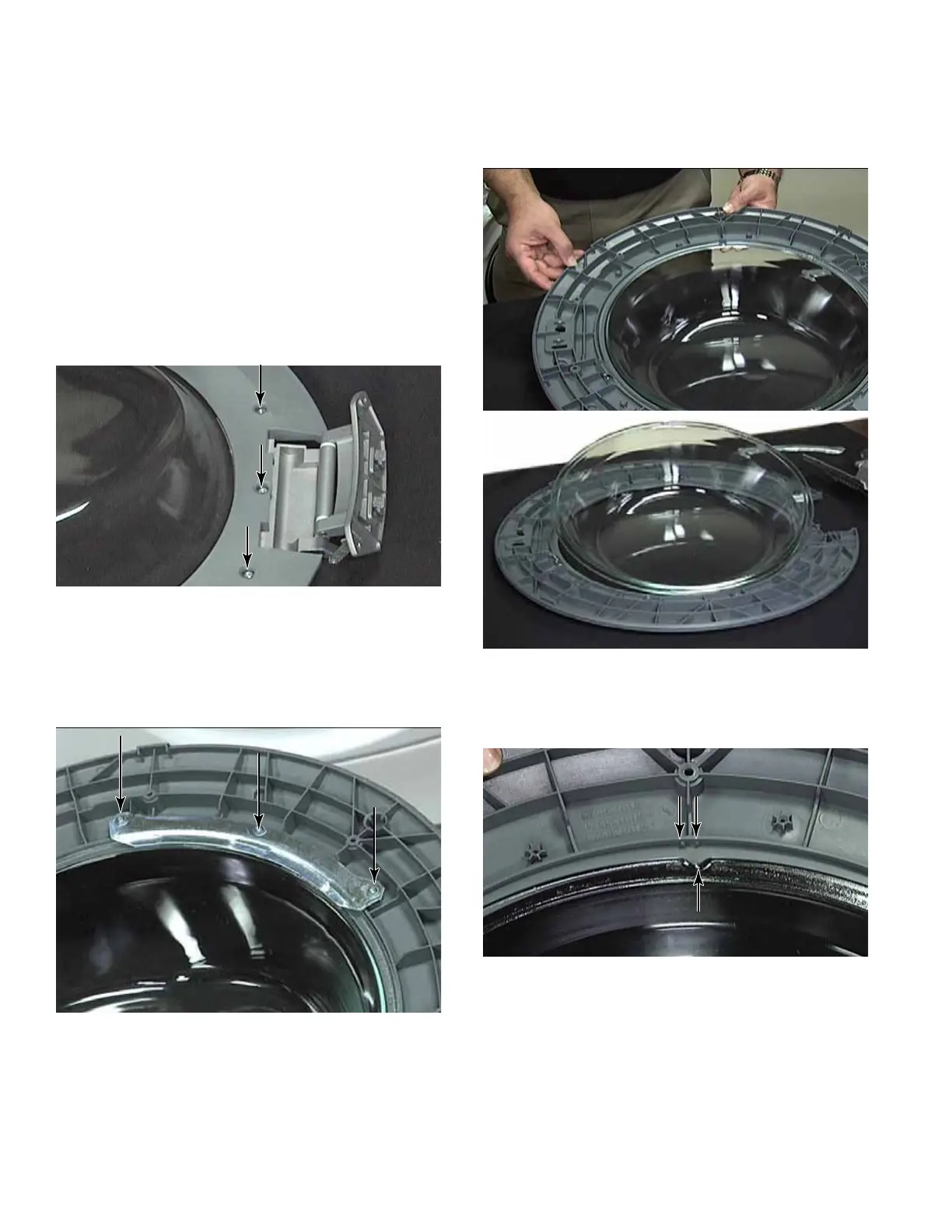

8. To remove the door hinge, remove three
T-20 machine screws securing the hinge
to the inner door panel. The hinge is also
used to hold part of the inner door panel and
must be removed to replace the bowl.
NOTE: The door hinge is secured with
machine screws. The door halves are
secured with screws for plastic. These
screws must not be interchanged.
9. To remove the bowl, remove the hinge and
remove three T-20 screws from each of
the two brackets secured to the inner door
panel. These screws also have threads
for plastic but are shorter than the screws
securing the door halves together.
10. Support the inner door trim to avoid having
it drop when removing the bowl brackets.
11. When reassembling the bowl and inner
door trim, position the notch on the rim of
the bowl, at the bottom of the door, aligned
with the 2 notches on the inner door panel.
12. There is no gasket or sealing material
between the inner door panel and bowl.
The bellow seats and seals against the
glass of the bowl which should keep water
from reaching this area. This is why the
glass bowl needs to be cleaned periodically
to avoid build up of hair and debris, which
will cause water leakage through the door
seal.
