4-66

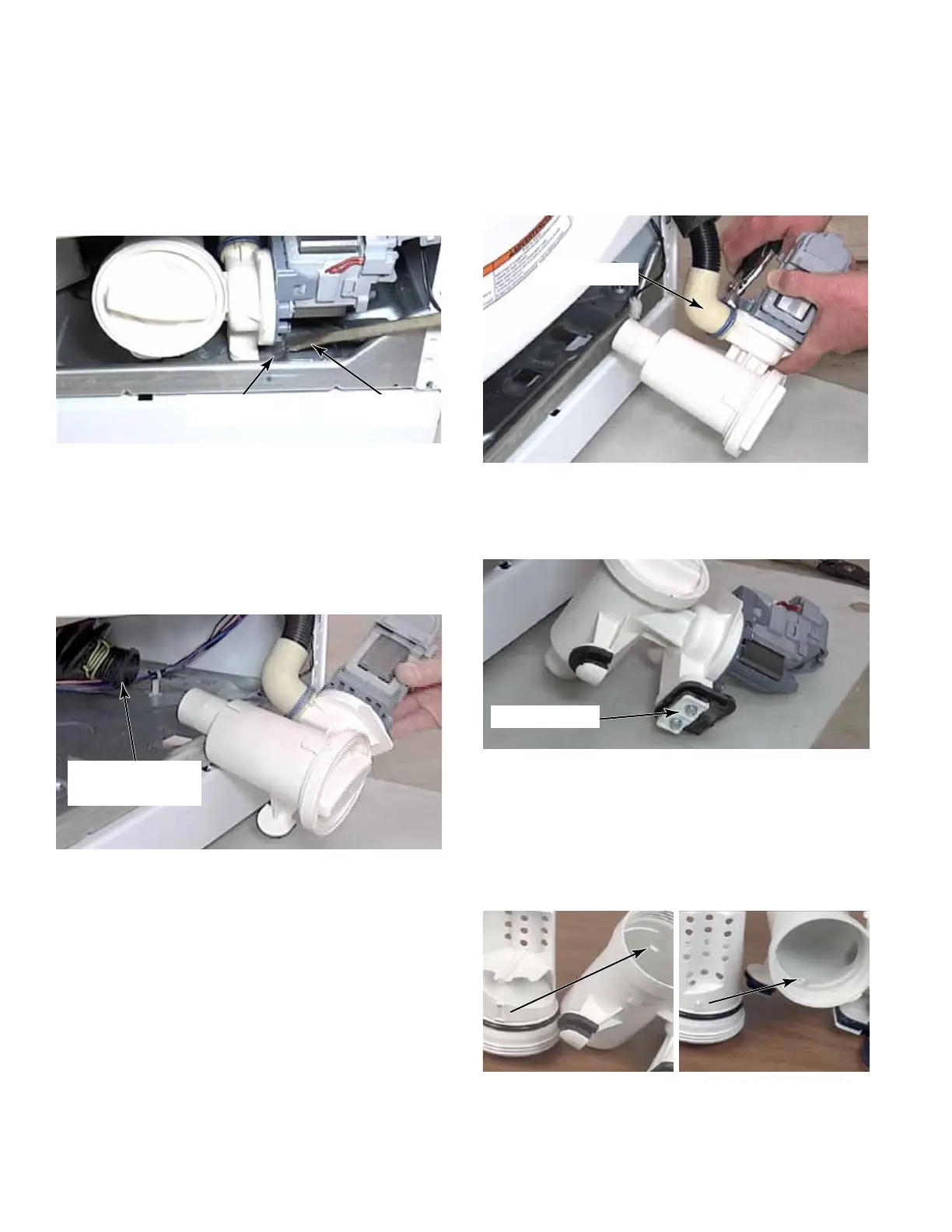

11. Use a large flat blade screwdriver to lift the
right edge of the rubber pad, on right pump
support, out of the hole in the washer base.
12. Slide the pump to the right and lift it from
the base of the washer.
13. Squeeze the clamp, behind the clean out
filter, and move it down the hose.
14. Pull the tub-to-pump hose off the pump.
15. Pull the pump out of the washer as far as it
will go.
16. Squeeze the clamp and pull the drain hose
off the pump.
17. The two screws securing the rubber
mounting piece to the bottom of the pump
support do not need to be removed to
remove the pump assembly.
18. The pump is one service part all together.
19. The filter has a large keyed shape on the
top and a smaller shape on the bottom,
which fit into corresponding sized shapes
in the filter housing, to avoid improper filter
orientation when it is reinstalled.
Rubber Pad
Screwdriver
Tub-To-
Pump Hose
Drain Hose
Two Screws
To Next Page
