McHale Fusion 2 drive systems section
13-11
McHale Fusion 2 round baler wrapper technical service manual
Issue 1: 0208

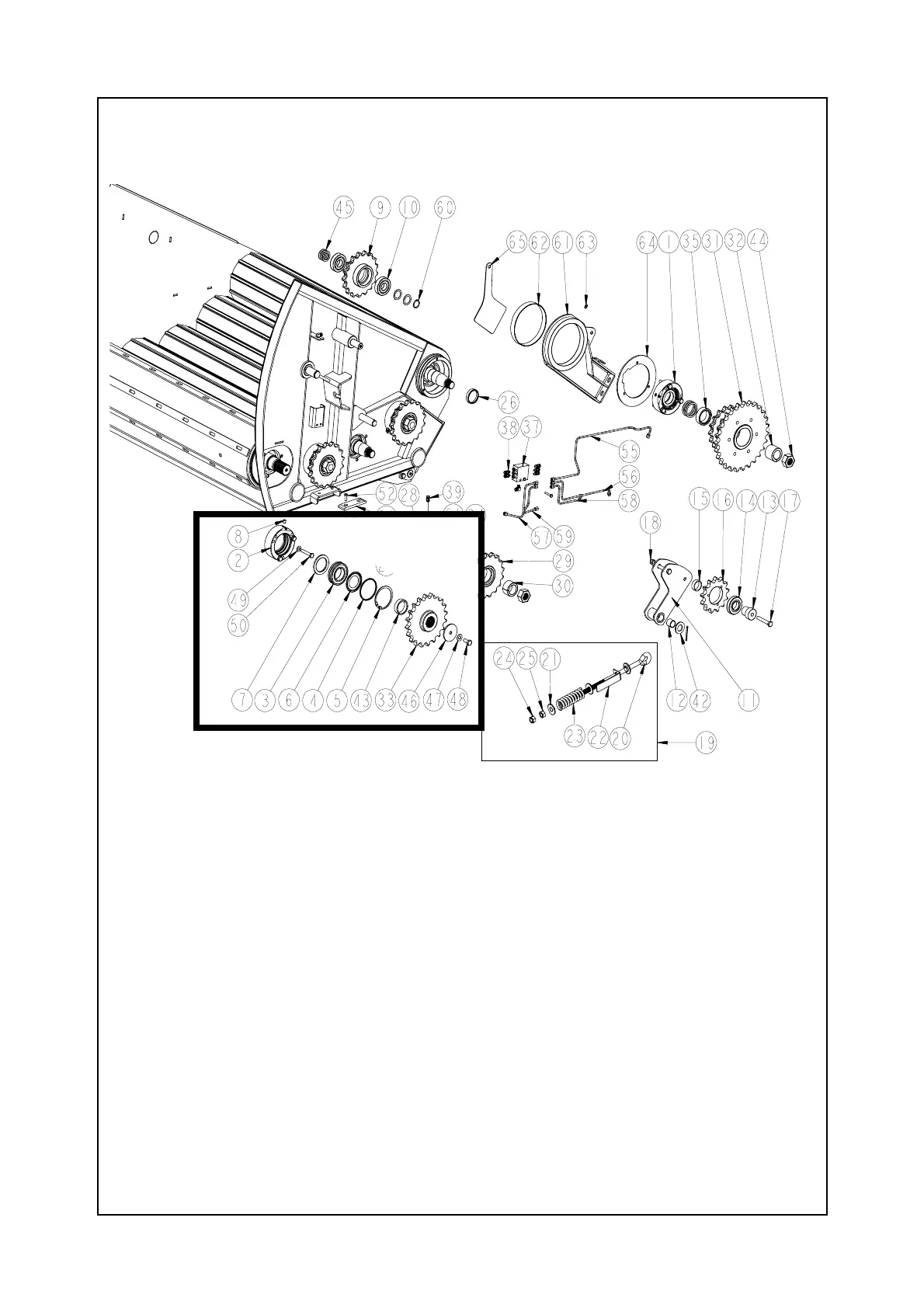

13.5.4 Procedure for removing the sprocket off the roller
ARC00030 (splined shaft)
1. Loosen Bolt 48 and unthread
2. Remove washers listed as 47 & 46
3. Remove the splined sprocket off the shaft
