PCWS 2015 Setup Guide - 2nd Edition B-3
Connector and Cable Diagrams
IO Panel Connectors
IDN - RS232 Peripheral

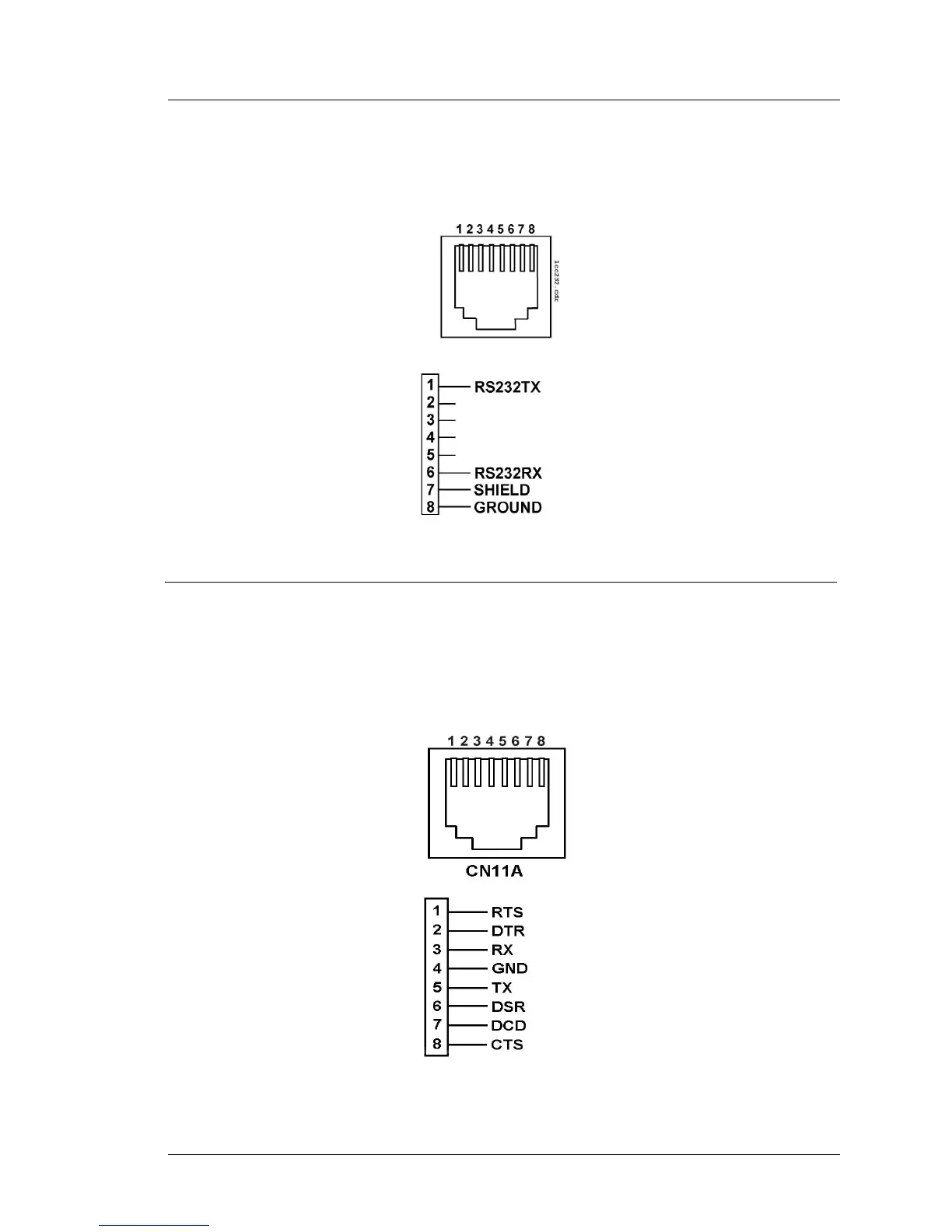

Figure B-2 shows the IDN port configuration for a basic RS232 interface. Use
cable P/N 300319-102 to convert this port to a DB9 connector.
Figure B-2: IDN Port Configured for RS232
COM 5
The PCWS 2015 includes one modular COM port, assigned to COM5. This is
a ‘full-featured’ COM port that also appears on the WS5, WS5A, PCWS
Eclipse, and PCWS 2010. Use cable P/N 300319-103 to convert this port to a
DB9 connector.
Figure B-3: COM5 Modular RS232 Connector
