Disassembling the PCWS 2015

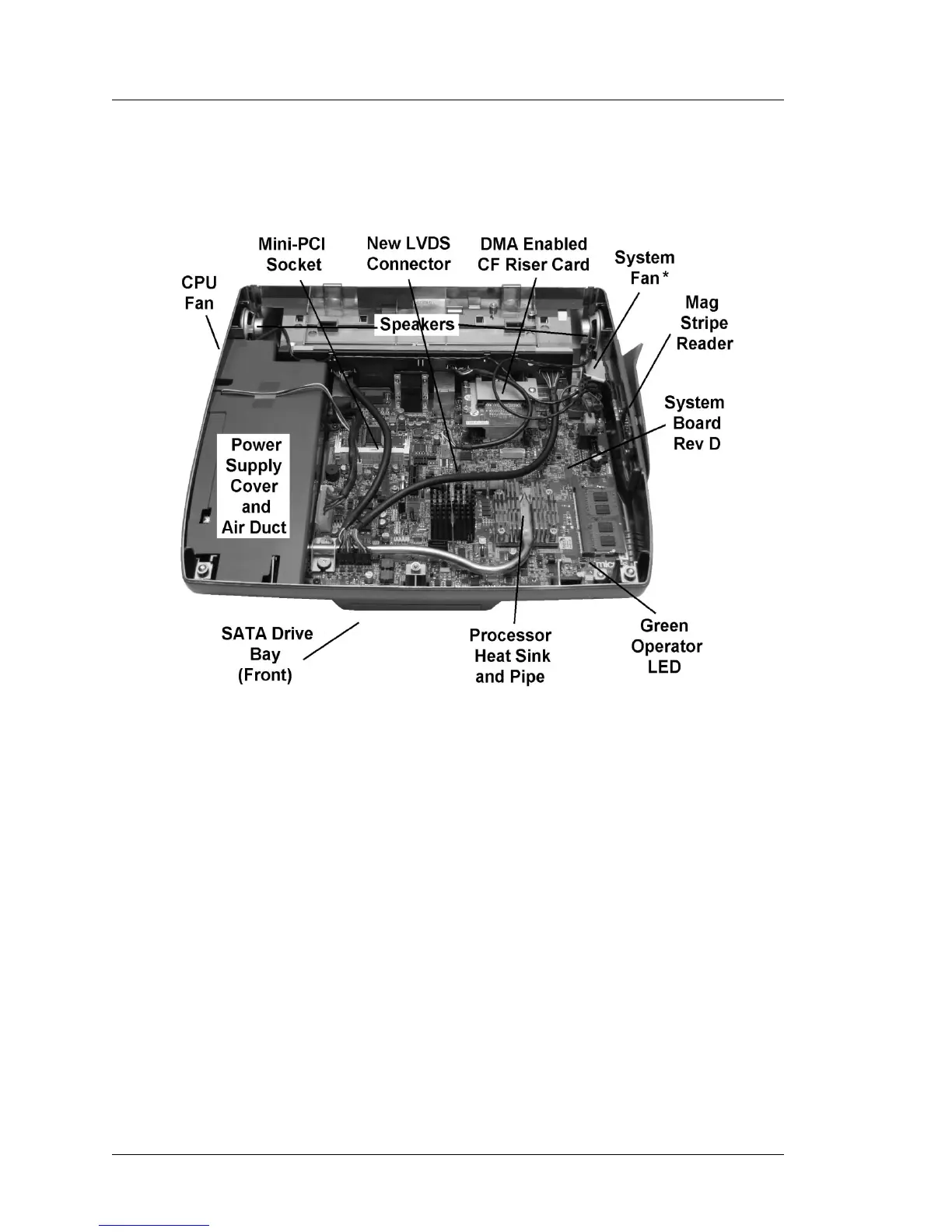

Figure 3-4, below points out the components of the PCWS 2015 base with the
Revision D System Board installed.
Figure 3-4: PCWS 2015 Base Assembly with Revision D System Board
System Board Revision D
The Revision D System Board includes the following changes.
• Requires BIOS Version O1301g or later. BIOS Versions O1201r and
O1301 used on the Revision C Board is not compatible.
• High Speed USB switches controlled by GPIO lines to manage the IO
panel USB ports. USB Ports can be managed through the PCWS
Diagnostics Utility.
• The LVDS connector, J19 changes to accommodate a new LVDS cable that
is not compatible with the LVDS cable used on the Revision C system
board and the WS5/WS5A workstations.
• The SATA to CF Riser Card changes to the DMA Enabled CF Riser Card
used on the Workstation 5A and 5A DC.
