3-18 PCWS 2015 Setup Guide - 2nd Edition
What’s Inside?
System Board Description
PCWS 2015 System Board Revision D Connectors
The Revision D System Board introduces a new LVDS Connector.

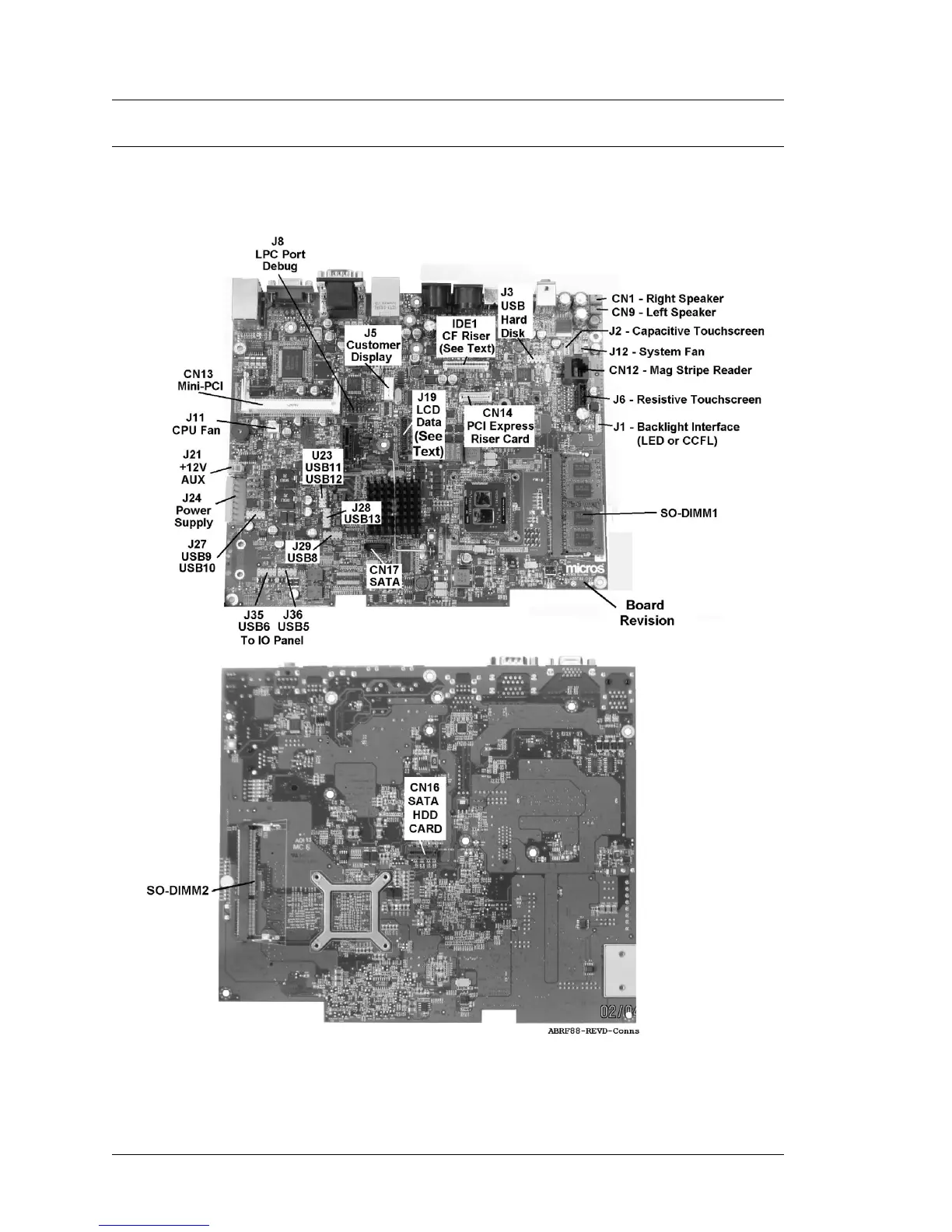

Figure 3-17: System Board Revision D Connectors
