B-6 PCWS 2015 Setup Guide - 2nd Edition
Connector and Cable Diagrams
System Board Connectors
System Board Connectors
This section details connectors located on the PCWS 2015 system board.
Magnetic Stripe Interface
The internal magnetic card reader connector is CN12, located on the system
board. The pin-outs for this connector are shown in Figure B-8,

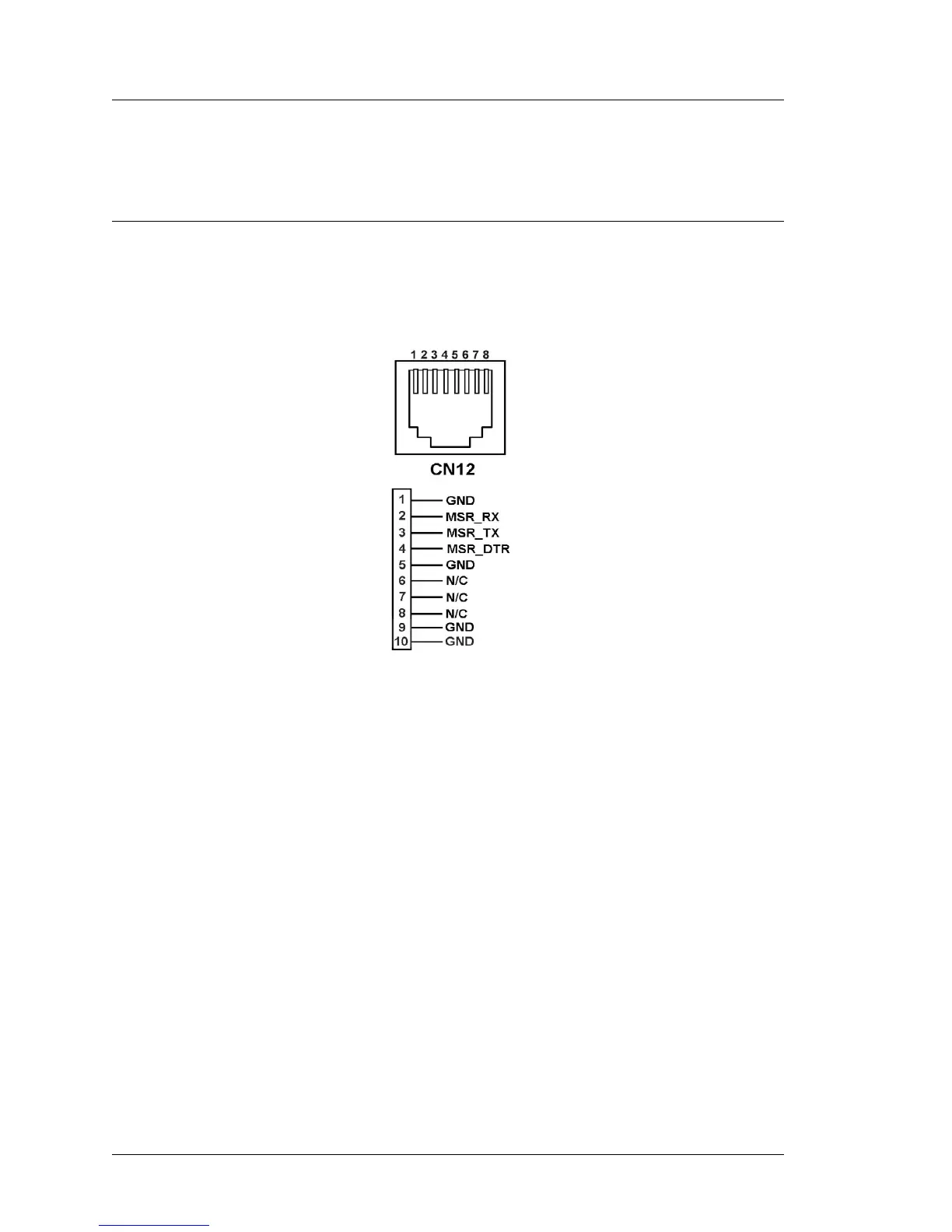

Figure B-8: PCWS 2015 System Board MSR Connector
