3-36 PCWS 2015 Setup Guide - 2nd Edition
What’s Inside?
Installing Options
Pole LCD Customer Display
This procedure describes how to install and connect the Pole LCD Customer
Display to a PCWS 2015. The pole version is provided as a kit consisting of
the LCD Display Assembly /w 5 ft. cable, 18” pole, base, extension cable, and
nut. Due to the varying thickness and materials used on the counter surface, the
installer must provide the base mounting hardware. The cable length is
approximately 5 feet.
1. Use the base as a template to locate the mounting holes in the counter
surface.
2. After mounting the pole and base to the counter surface, route the
extension cable through the pole and connect it to the LCD assembly cable.
Attach the LCD assembly to the pole, position the display head in the
desired position and use a 1.5 mm hex wrench to lock the display in place.

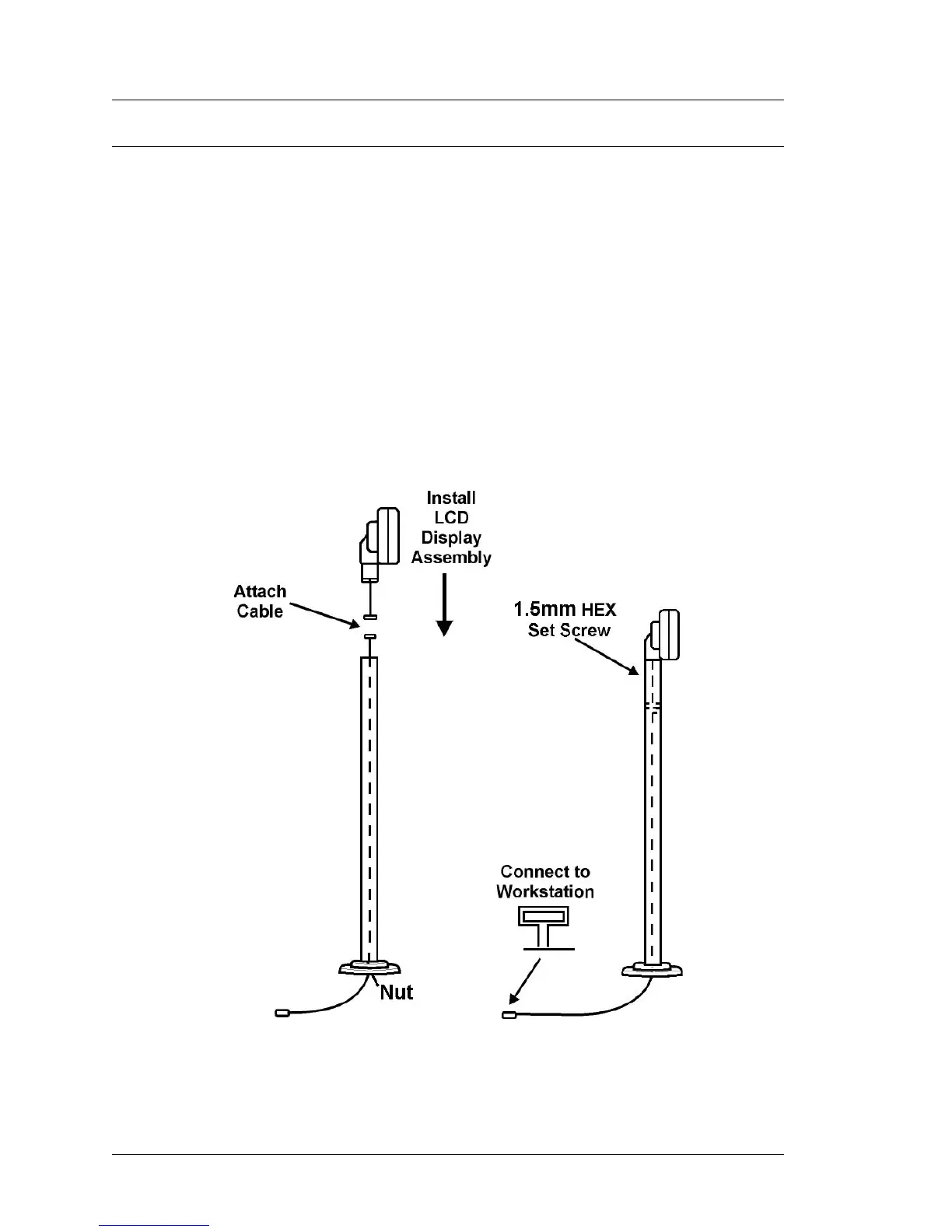

Figure 3-33: Assembling the Pole Customer Display
