Micros Systems PCWS 2015 - Cash Drawer 1 and 2 Connectors; Remote Customer Display Connector

PCWS 2015 Setup Guide - 2nd Edition B-5
Connector and Cable Diagrams
IO Panel Connectors
Cash Drawer 1 and 2 Connectors

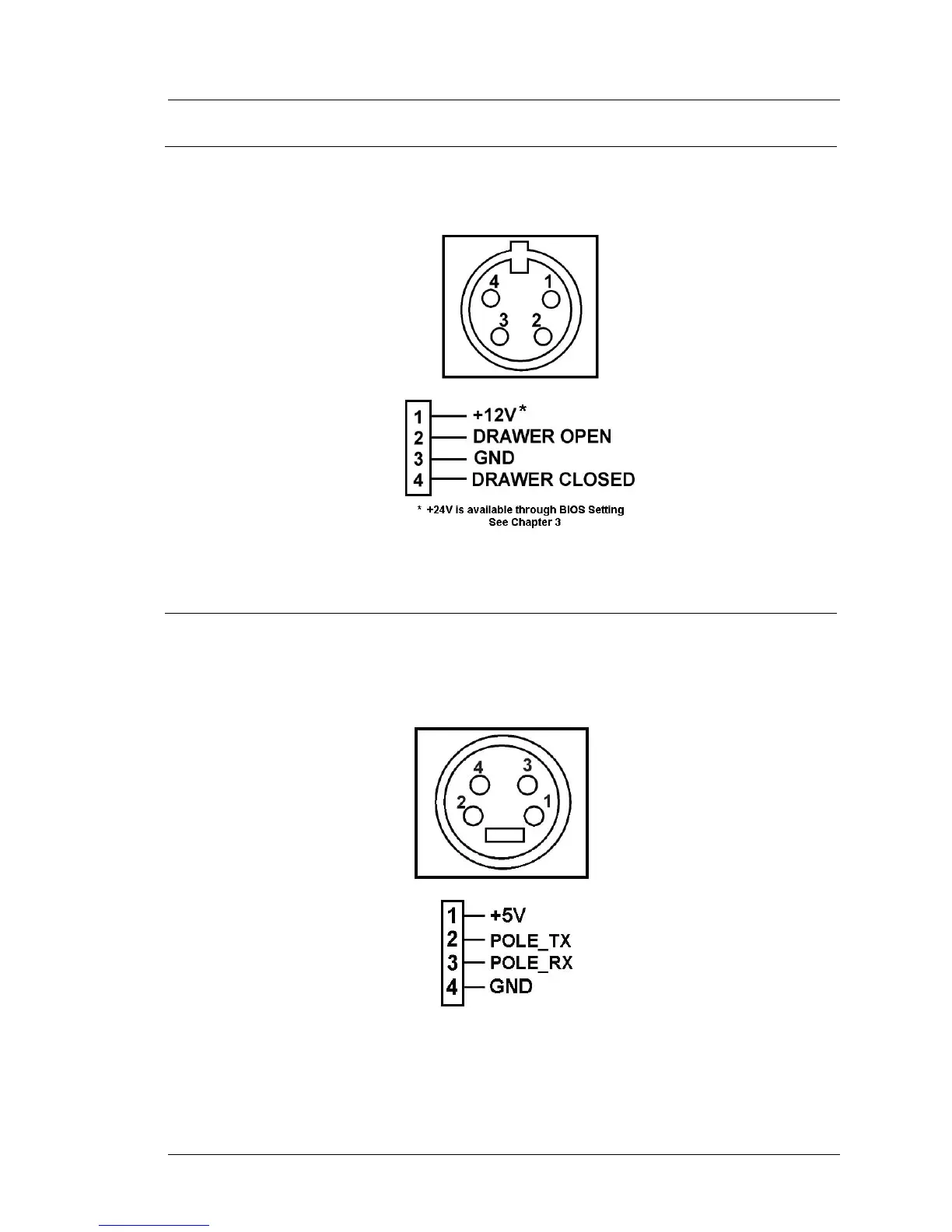

Figure B-6: Cash Drawer Connector Diagram
Remote Customer Display Connector
This port supports either the 2x20 VFD customer display or the graphics based
LCD customer display.
Figure B-7: Customer Display Connector Diagram
