3-16 PCWS 2015 Setup Guide - 2nd Edition
What’s Inside?
System Board Description
PCWS 2015 System Board Revision C Connectors

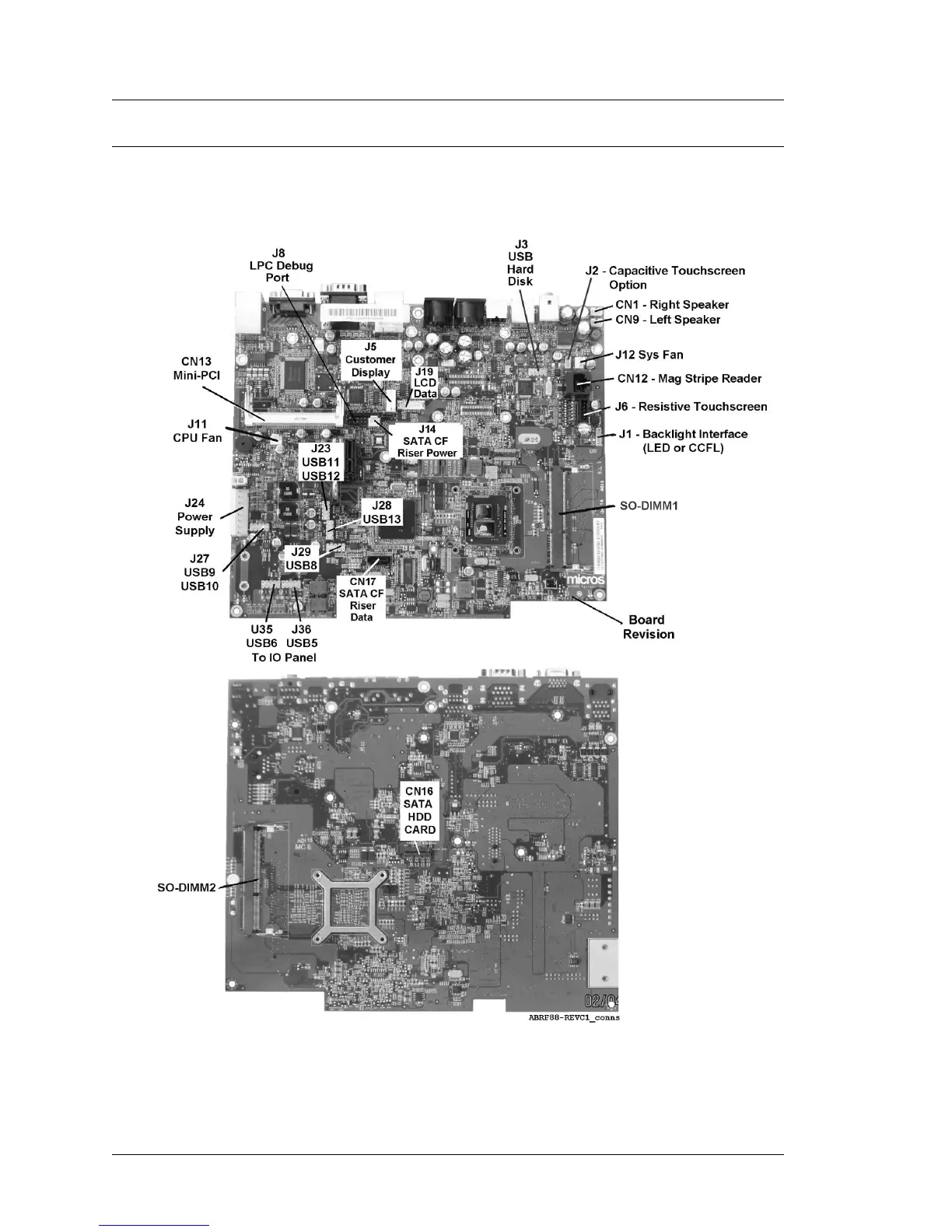

The Figure below shows all connectors on the Revision C Board.
Figure 3-15: System Board Revision C - Connectors
