PCWS 2015 Setup Guide - 2nd Edition 3-29
What’s Inside?
System Board Technical Description
LCD and Touchscreen Assembly
The PCWS 2015 currently ships with a 15” Resistive Touchscreen and AUO
LCD with LED Backlights. The available Capacitive Touchscreen option is
shown on the next page.
Resistive Touchscreen Details
The LCD/Touchscreen Assembly with resistive touchscreen is shown in
Figure 3-25, below. In the lower left corner, note the two different LVDS
connectors corresponding to the System Board Revision.

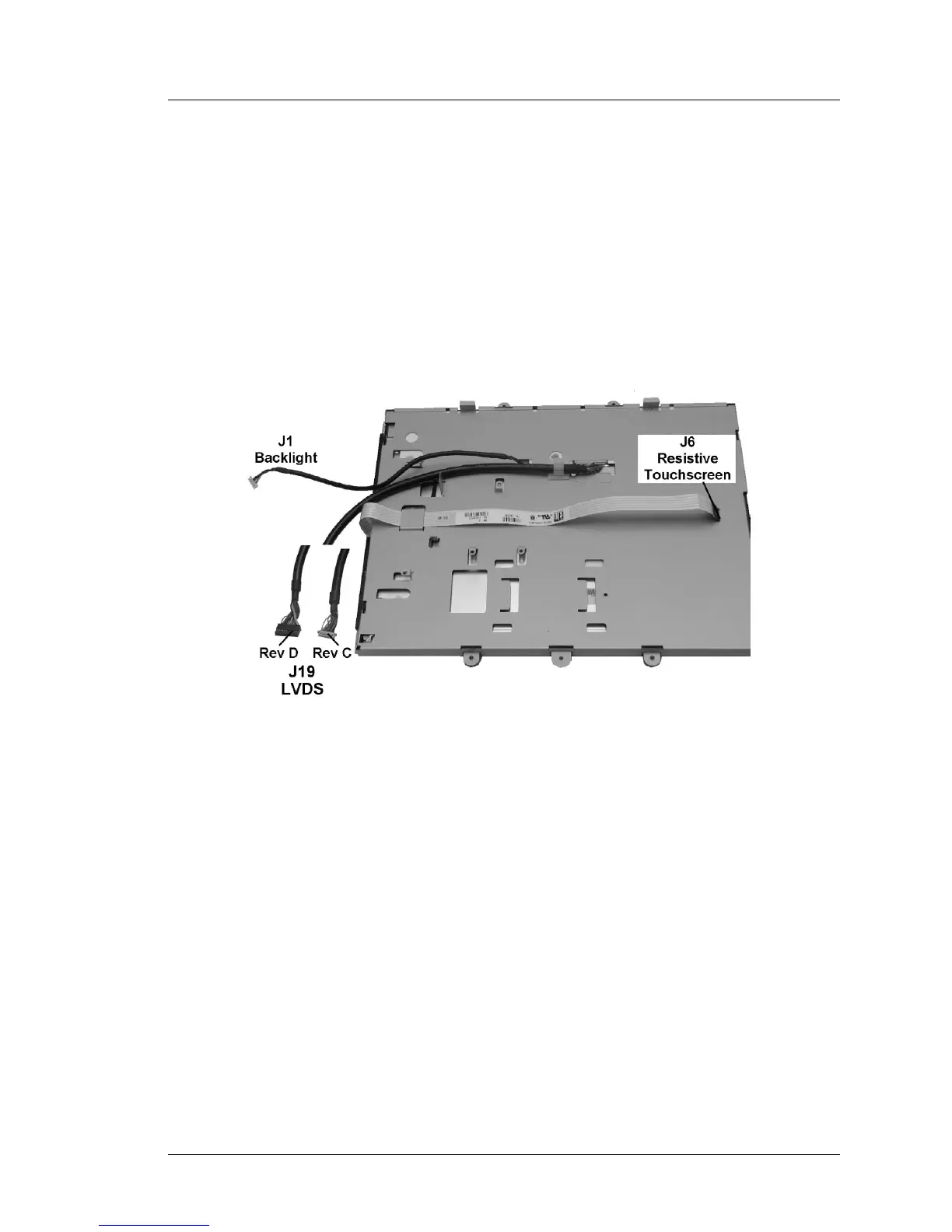

Figure 3-25: The PCWS 2015 /w Resistive Touchscreen and LED Backlights
The LVDS connector J19, changes on Revision D. The illustration shows
examples of both connectors, based on board revision.
