PCWS 2015 Setup Guide - 2nd Edition 2-25
PCWS 2015 BIOS
Advanced
Winbond Configuration
The Figure below displays the pre-assigned PCWS 2015 Serial Port IO
Address, and Interrupt resources for each COM Port. The COM Port resources
apply to all BIOS Versions and System Board Revisions and are shown for
reference only.

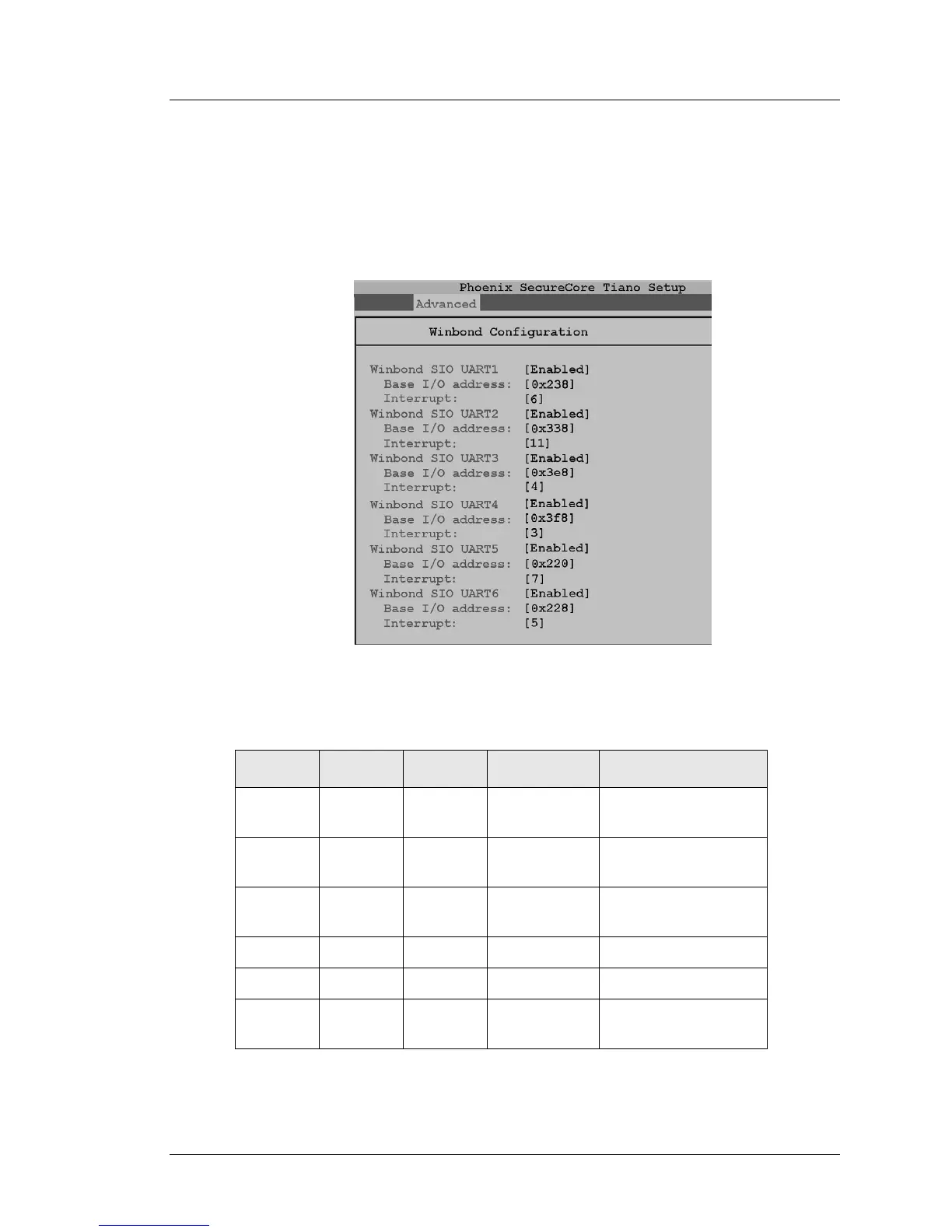

Figure 2-12: Super IO COM Port Assignments
The Table shown below maps each COM Port to a physical connector.
Figure 2-13: COM Port Assignments and Connector Mapping
PORT I/O Addr IRQ SIO Port Connector/Function
COM1 238h 6 UART1 CN8A - DB9M
(Powered)
COM2 338h 11 UART 2 CN8B - DB9M (Non
Powered)
COM3 3e8h 4 UART 3 CN2 - Pole
J5 - Integrated
COM4 3f8h 3 UART 4 CN11B - IDN
COM5 220h 7 UART 5 CN11A - RJ45 RS232
COM6 228h 5 UART 6 CN12 - Mag Stripe
Reader
