What’s Inside?
Disassembling the PCWS 2015

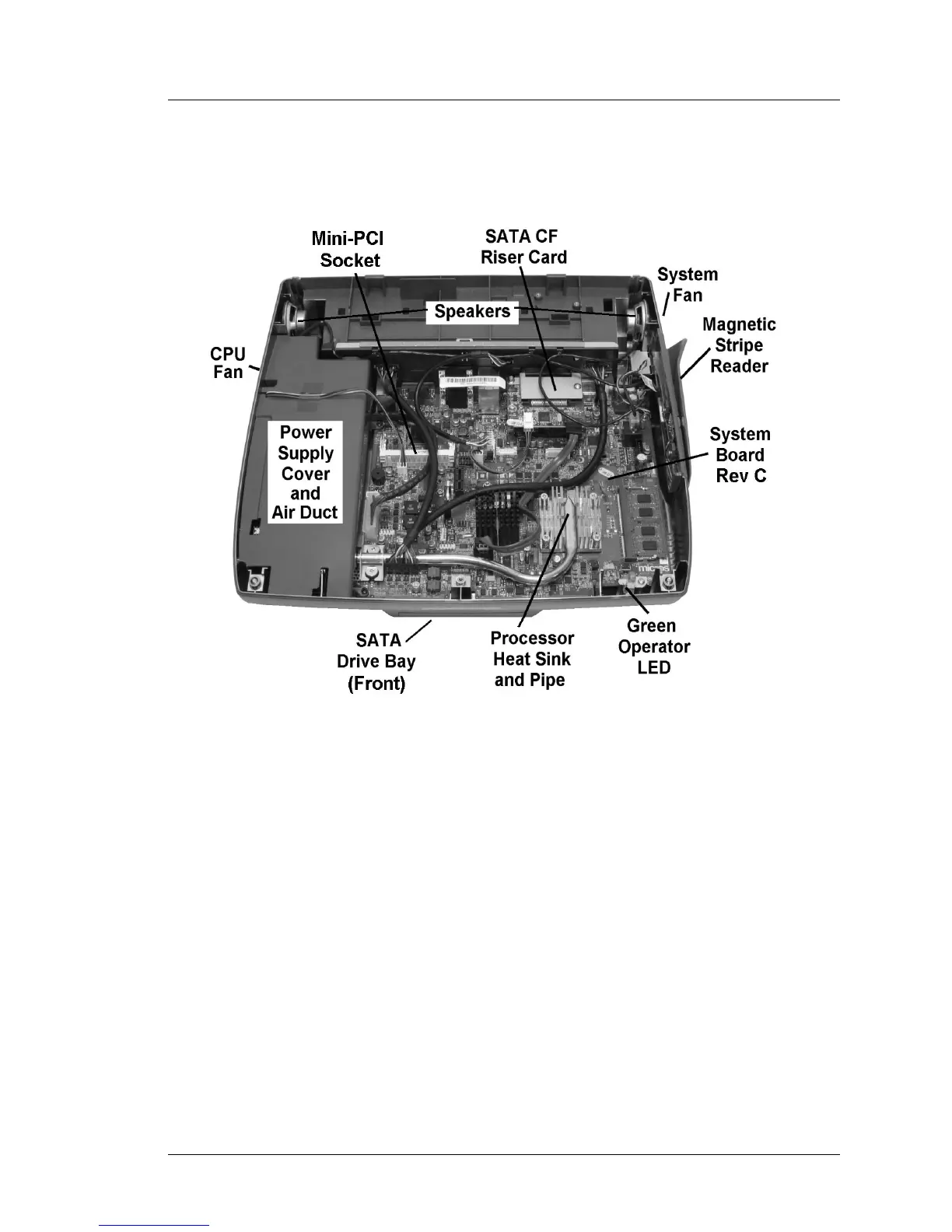

Figure 3-3 below, points out the major components of the PCWS 2015 base
with the Revision C System Board.
Figure 3-3: PCWS 2015 Base Assembly with Revision C System Board
System Board Revision C
• Requires BIOS Versions 1201r or 1301 only. Not compatible with the
1301g or later BIOS used on the Revision D System Board.
• USB Ports can be managed through the BIOS South Bridge Configuration
menu, not available through the PCWS Diagnostics Utility.
• This board is not compatible with the DMA Enabled CF Card used on
Revision C System Boards and all version of the WS5 and WS5A.
