PCWS 2015 Setup Guide - 2nd Edition 3-19
What’s Inside?
System Board Description
PCWS 2015 System Board Revision C and D Jumpers and Switches
The Revision D System Board adds a new configuration jumper.

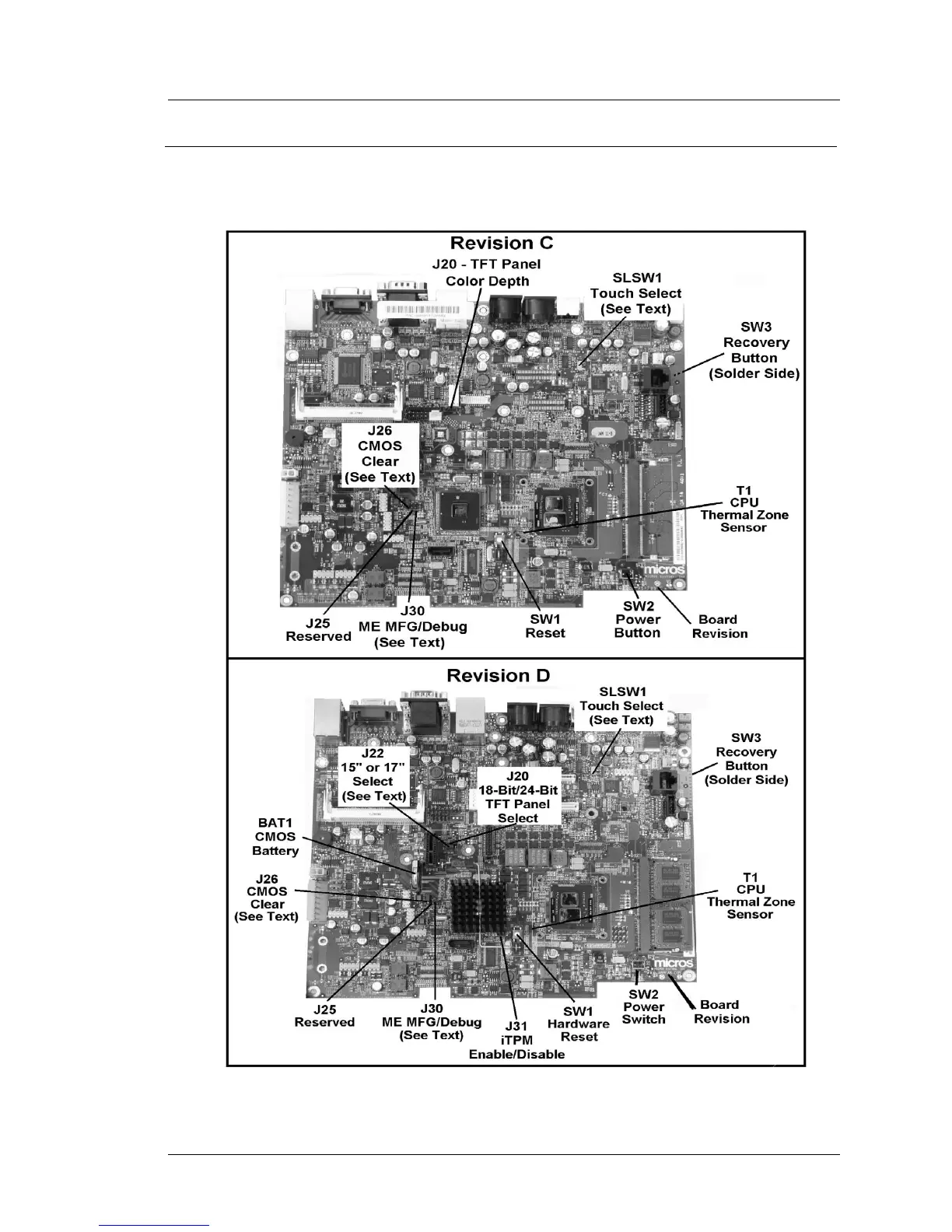

Figure 3-18: System Board Revision C and D Jumpers and Switches
