1-12 PCWS 2015 Setup Guide - 2nd Edition
What is the PCWS 2015
Features
LCD Customer Display Options
The PCWS 2015 supports the 240x64 LCD Customer Display and the Protege
Customer Display System. Integrated, Pole and Adjustable Stand Mounted
versions are available, as detailed in the following pages.
240x64 LCD Customer Display
This display is based on a 240x64 monochrome STN LCD and companion
LCD control board. It can emulate the 2x20 VFD Customer Display or
operate in full graphics mode.

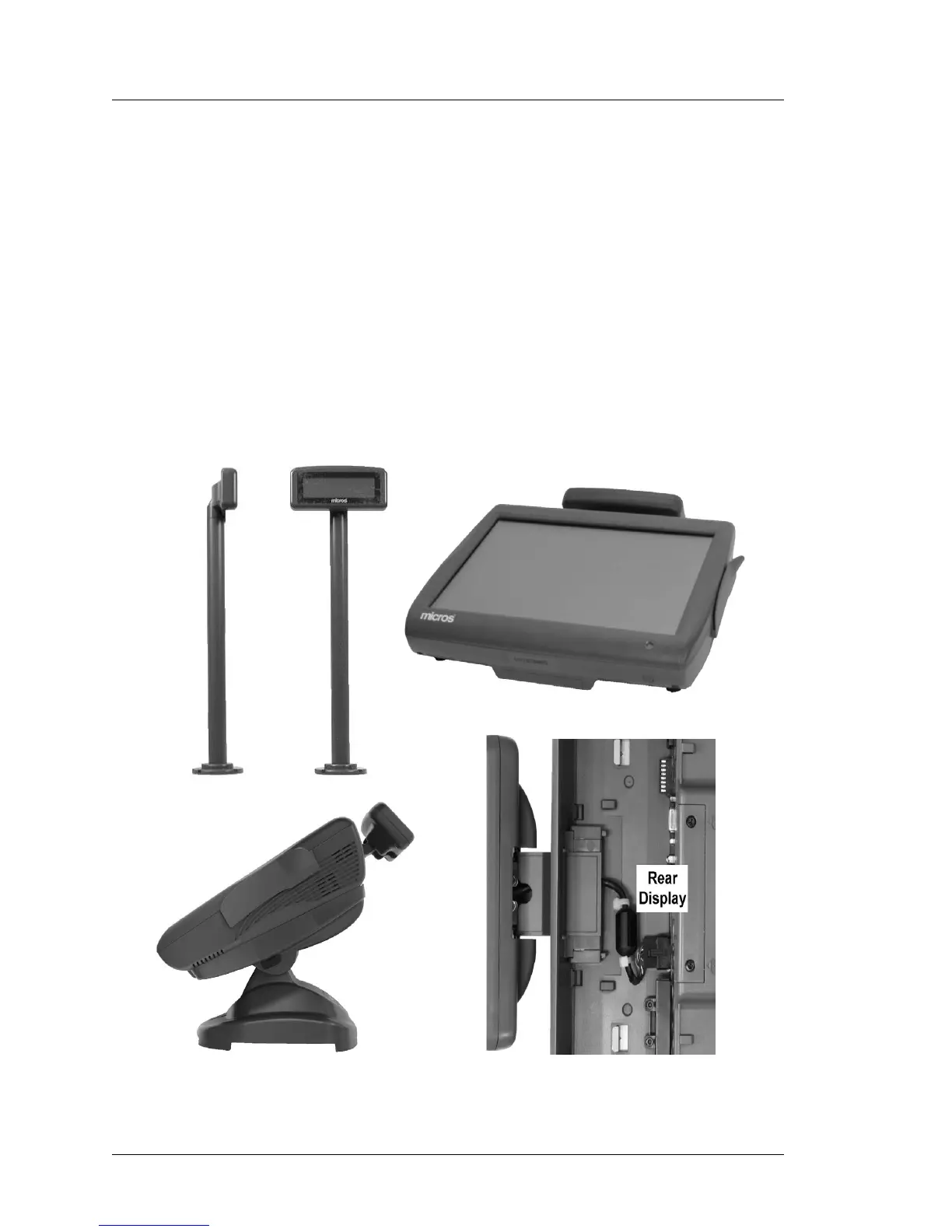

Figure 1-7 displays Integrated and Pole versions of the 240x64 LCD
Customer Display. The lower right hand corner shows how the integrated
version receives power and data through the IO Panel Remote Display
Connector.
Figure 1-7: The 240x64 LCD Customer Display
