3-12 PCWS 2015 Setup Guide - 2nd Edition
What’s Inside?
System Board Description
System Board Description
This section displays a Block Diagram of the PCWS 2015, then goes on to
point out the System Board components, connectors and jumpers.
PCWS 2015 Revision C System Board /w Resistive Touchscreen

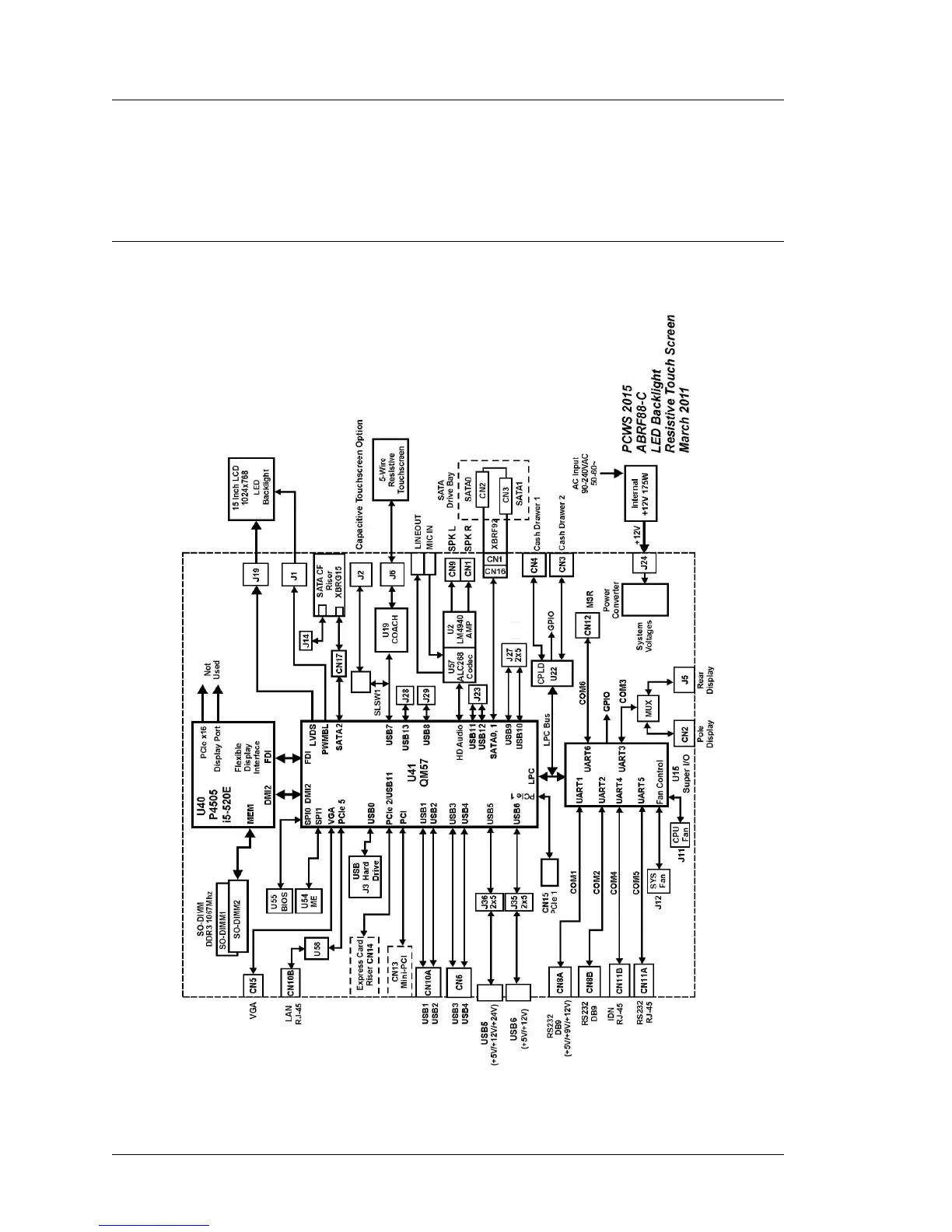

Figure 3-11: Block Diagram /w Revision C System Board
