Micros Systems PCWS 2015 - Page 81

PCWS 2015 Setup Guide - 2nd Edition 3-13
What’s Inside?
System Board Description
PCWS 2015 Revision C System Board /w Optional Capacitive Touchscreen

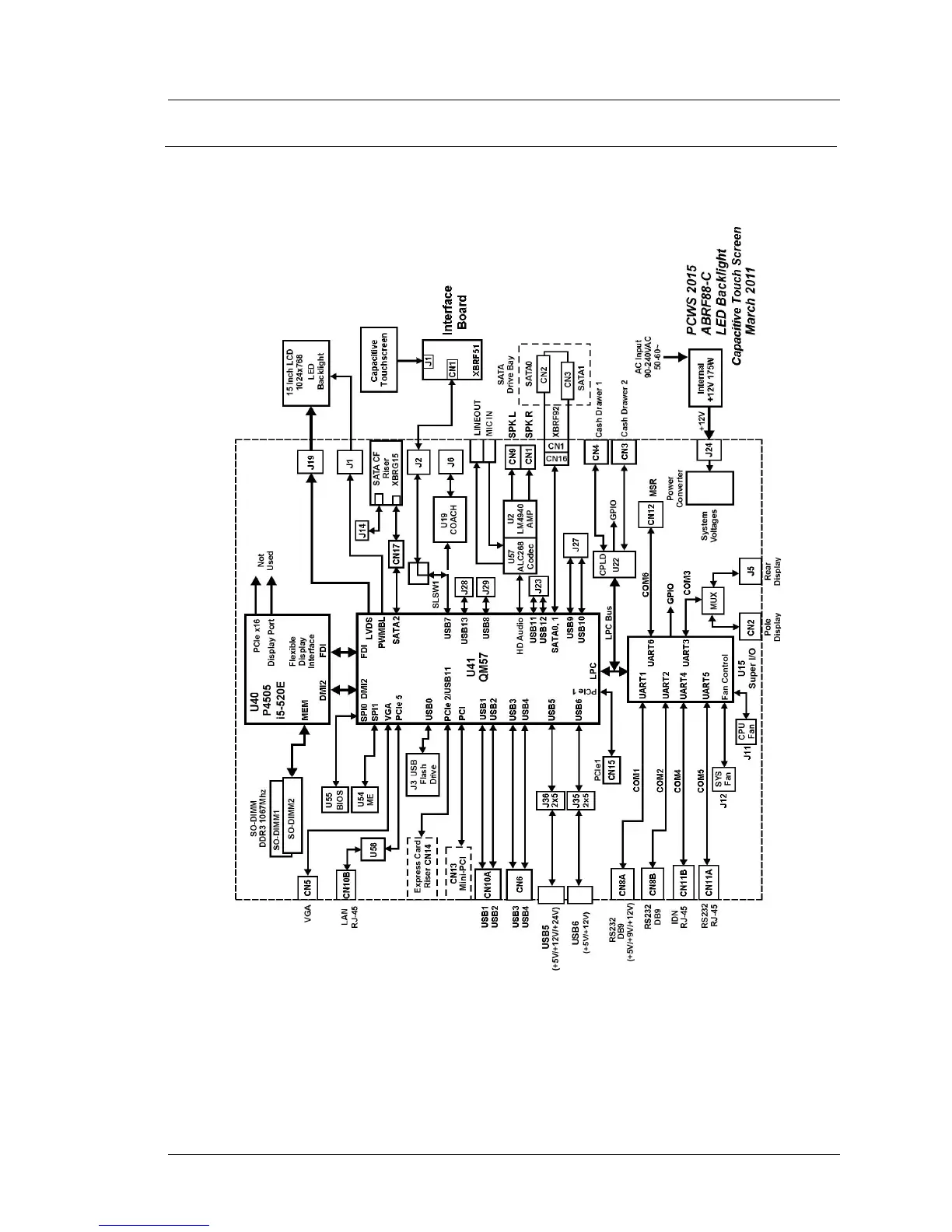

Figure 3-12: Block Diagram /w Rev C System Board and Optional Capacitive
Touchscreen
