System Board Description
PCWS 2015 Revision D System Board with Resistive Touchscreen
The Revision D System Board uses the DMA Enabled CF Riser Card and adds
support for IO Panel USB Control.

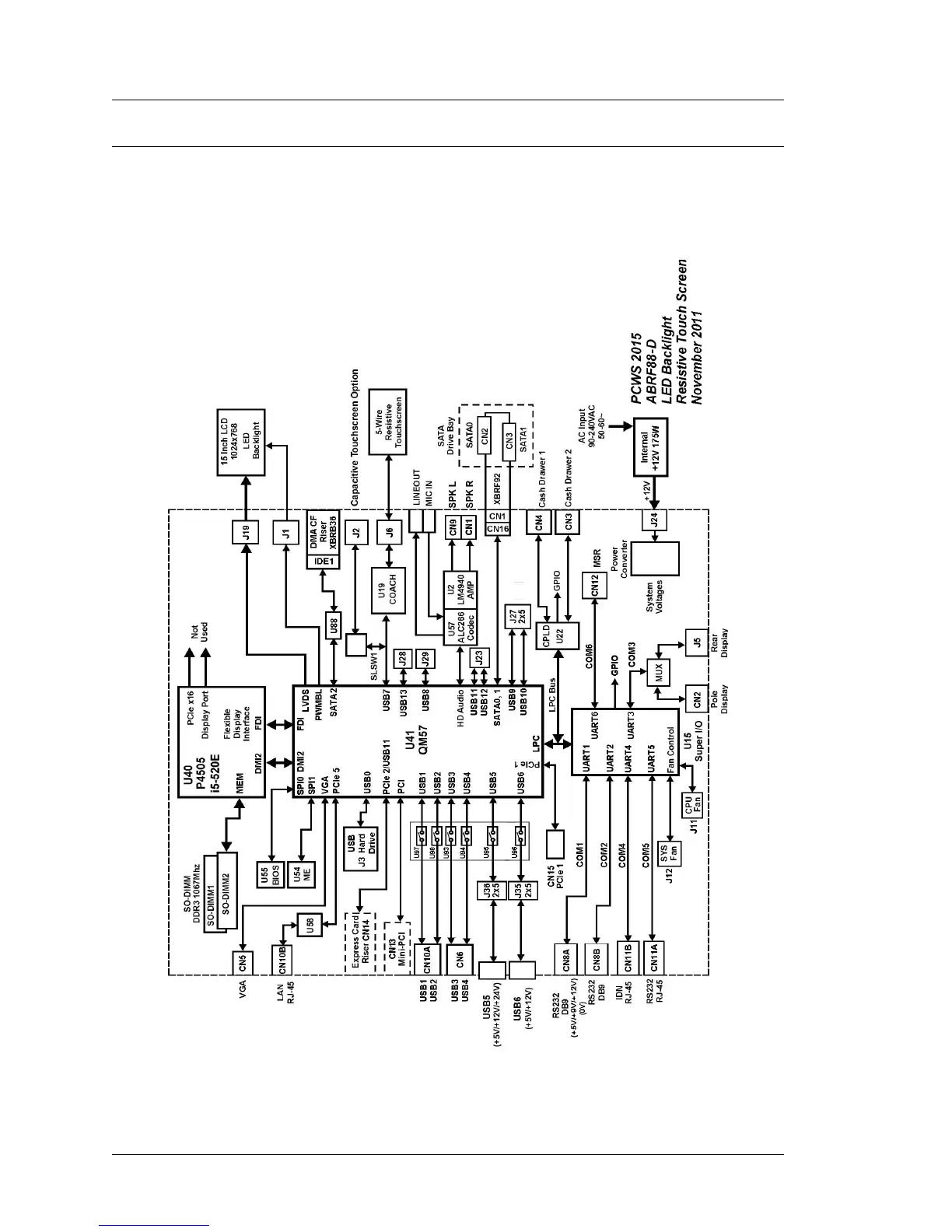

Figure 3-13: PCWS 2015 Block Diagram /w Revision D System Board
