PCWS 2015 Setup Guide - 2nd Edition B-9
Connector and Cable Diagrams
Hook-up Cables
Remote Pole LCD Customer Display

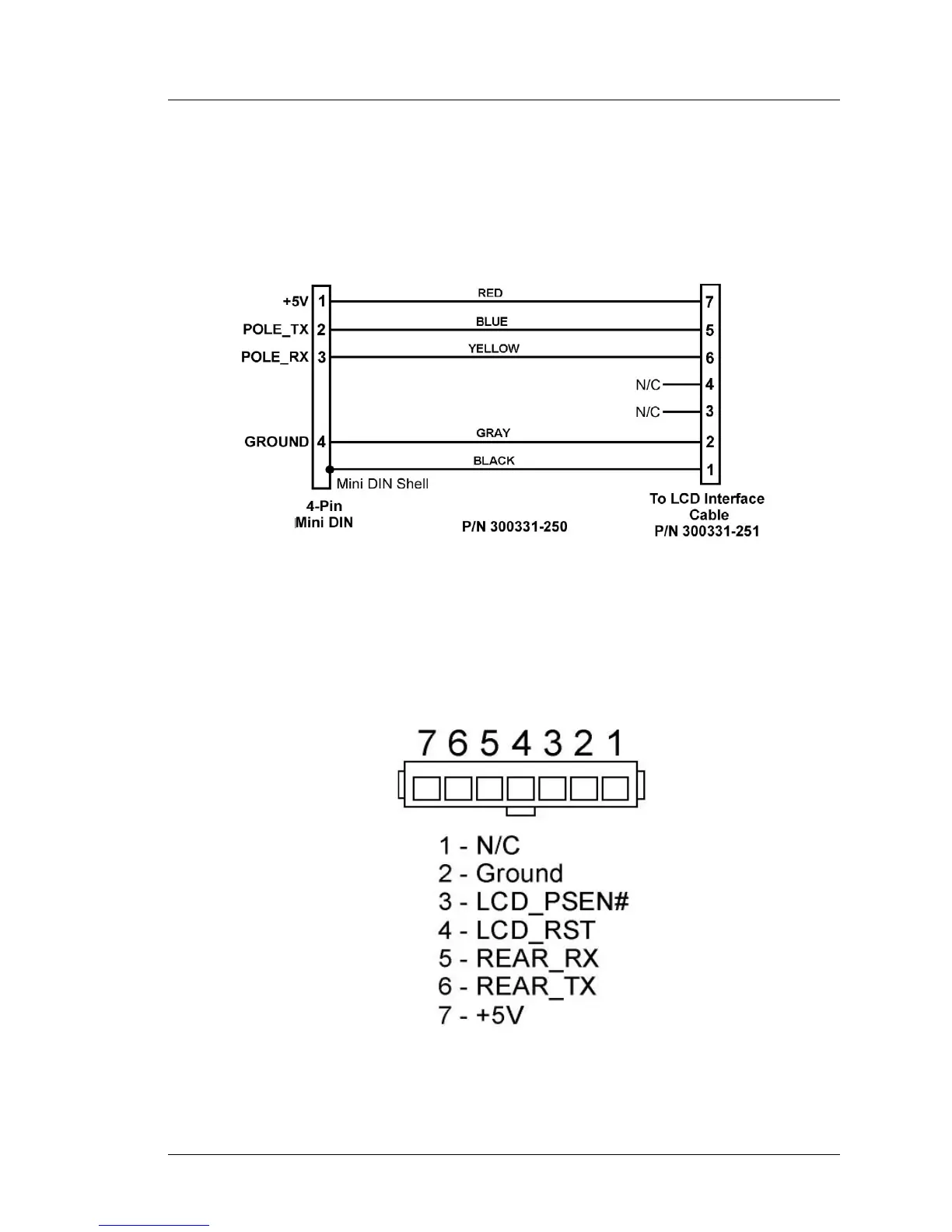

The cable shown in Figure B-13 is supplied with the Pole LCD Customer
Display or Adjustable Stand Pole Display kit. It attaches between the 4-pin
Mini-DIN connector on the I/O panel, through the pole to mate with the cable
from the LCD Customer Display Housing Cable shown in Figure B-12.
Figure B-13: Remote Pole LCD Customer Display Assembly
IO Panel Customer Display Connector
The PCWS 2015 places the integrated or rear customer display connector on
the IO Panel. A diagram of this connector is shown below.
Figure B-14: IO Panel Integrated LCD Connector
