14-1
14 IBP Monitoring
14.1 Overview
The monitor provides two channels to measure the invasive blood pressure (IBP, including
diastolic, systolic and mean pressures), and displays two waveforms.

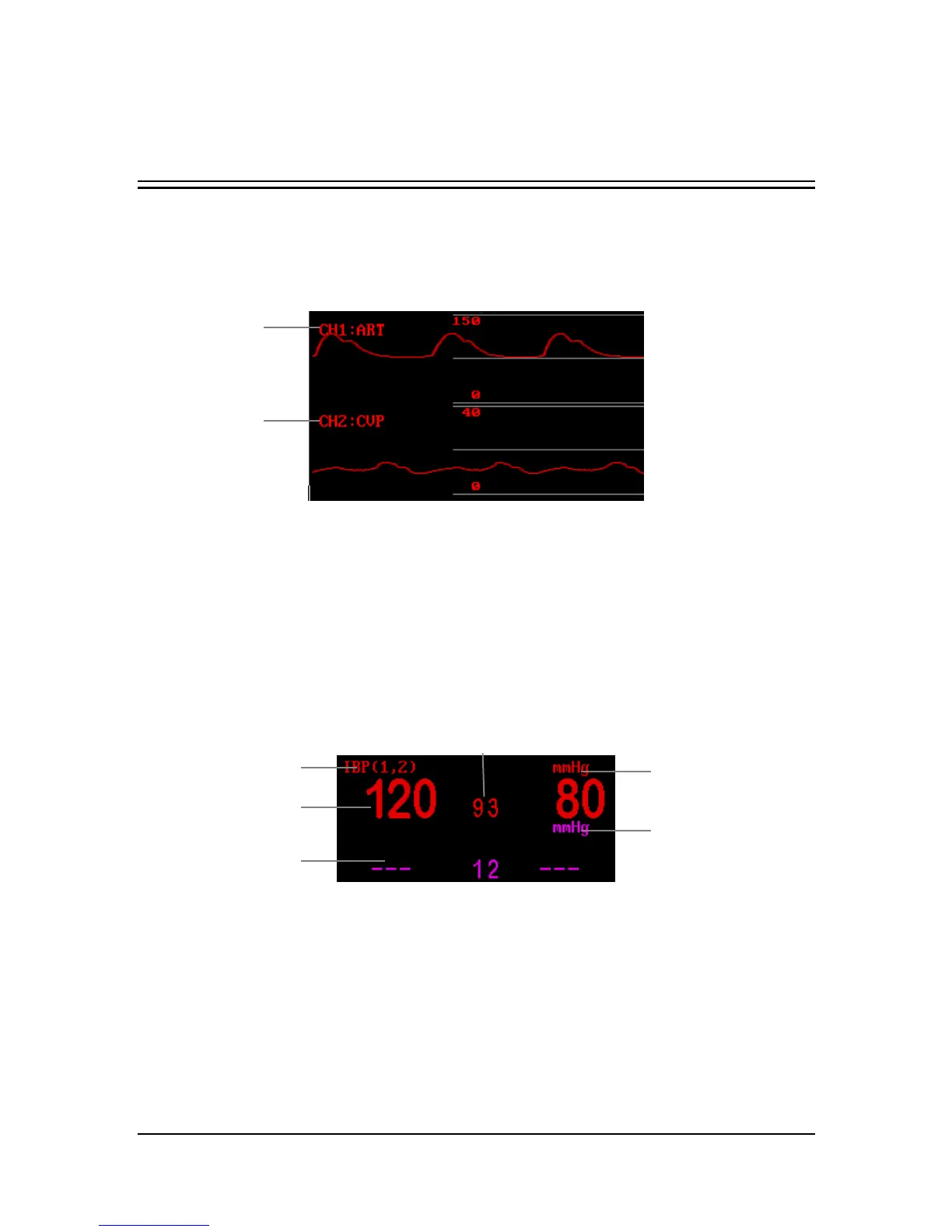

Figure 14-1 IBP Waveform
1. CH1 label: select the waveform of channel 1 to be displayed.
2. CH2 label: select the waveform of channel 2 to be displayed.
Options for CH1 and CH2: ART (Arterial Blood Pressure), PA (Pulmonary Arterial Pressure),
CVP (Center Venous Pressure), RAP (Right Atrial Pressure), LAP (Left Atrial Pressure), ICP
(Intracranial Pressure) and P1-P2 (Expand Pressure).
Besides, each waveform is followed by three scale lines, among which the upper and the lower
ones are marked by scales on the left.
The parameter window locates to the right of the IBP waveforms as shown below.
Figure 14-2 IBP Parameter Window
1. IBP (1,2) label: This label allows you to access the IBP (1,2) SELECT menu.
2. Pressure unit: mmHg, kPa or cmH2O.
3. Parameter values of channel 1: Systolic pressure, mean pressure and diastolic pressure (from
the left to the right).
4. Parameter values of channel 2: Systolic pressure, mean pressure and diastolic pressure (from
the left to the right). When ART or ICP is selected for CH1 and CH2 respectively, the ICP
and CPP values will be displayed, where CPP is equal to the mean pressure of ART minus
ICP.
5. PR numeric
1
3
4
2
1
2
5
2
