12.4.1 Calibration
If you select the CALIBRATE option, the monitor starts the NIBP calibration and the
CALIBRATE option changes to STOP CAL. Selecting the option again stops the calibration.
Calibrate the cuff pressure reading with a calibrated reference manometer (or mercury
manometer) with accuracy higher than 1mmHg. To perform the calibration, follow the procedure
shown below:
1. Remove the blood pressure cuff from the monitor and replace it with a rigid metal container
or vessel with a capacity of 500 ml ± 5%.
2. Connect a calibrated reference manometer (with an error less than 1mmHg) and a ball pump
using “T” connectors as shown below.
3. Select the CALIBRATE option.
4. Inflate the metal container using the ball pump until the reference manometer reads 0, then
50, and finally 200 mmHg.
5. The difference between the indicated pressure of the reference manometer and the indicated
pressure of the monitor will not exceed 3 mmHg. Contact our Customer Service if these
values are not met.

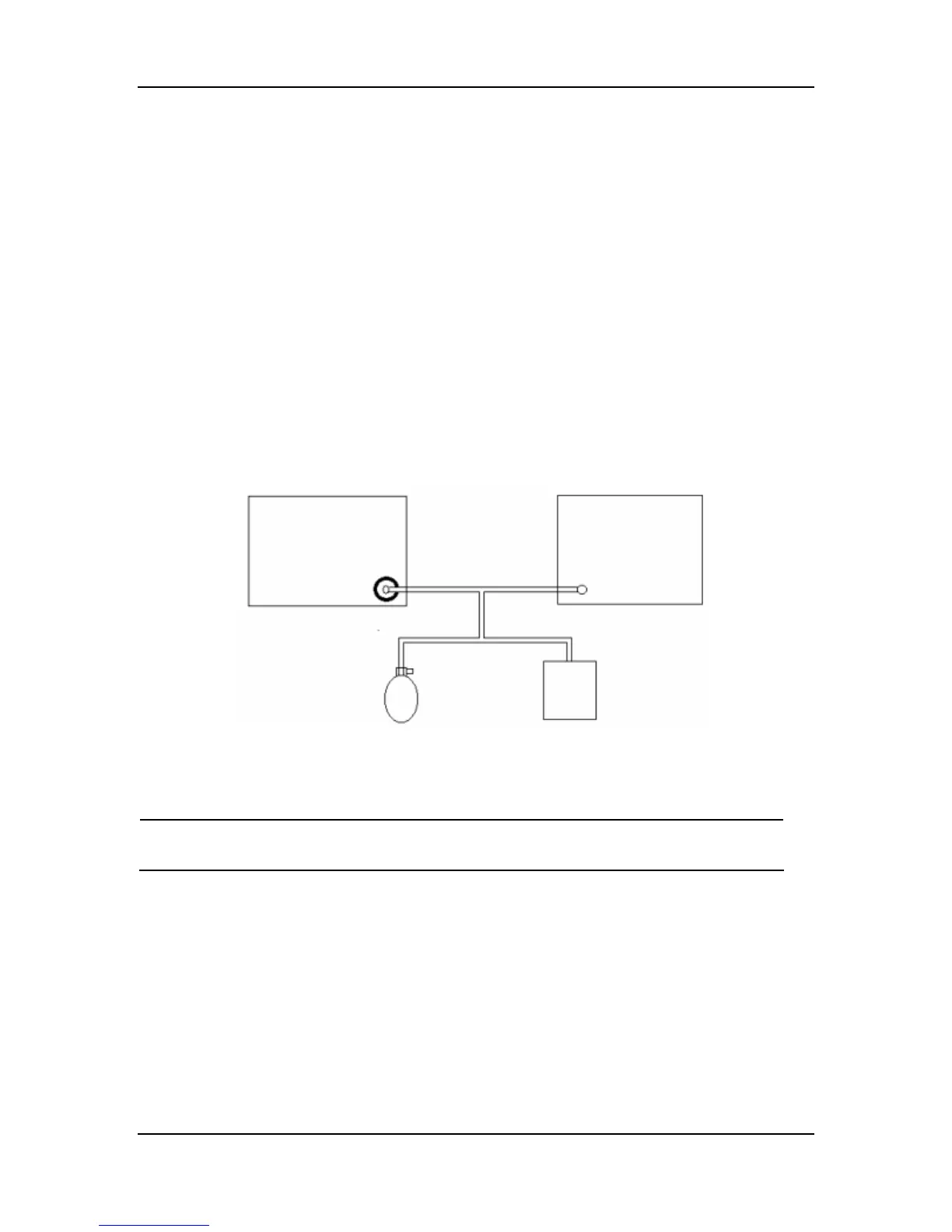

Figure 12-3 NIBP Calibration
NOTE
z The calibration of the NIBP measurement should be performed every two years
or performed according to the Hospital Procedure.
Monitor
N
IBP cuff
connector
Hose
Reference
manometer
Metal vessel
Ball pump
