4-25
4.7.2 IP Address Setup
When the monitor is connected with the central monitoring system, and the NET TYPE is CMS+,
you need to set the IP address of your monitor. Select IP ADDRESS SETUP in USER
MAINTAIN menu. The following menu appears. For details, please contact with the technician
responsible for the central monitoring system in your hospital.

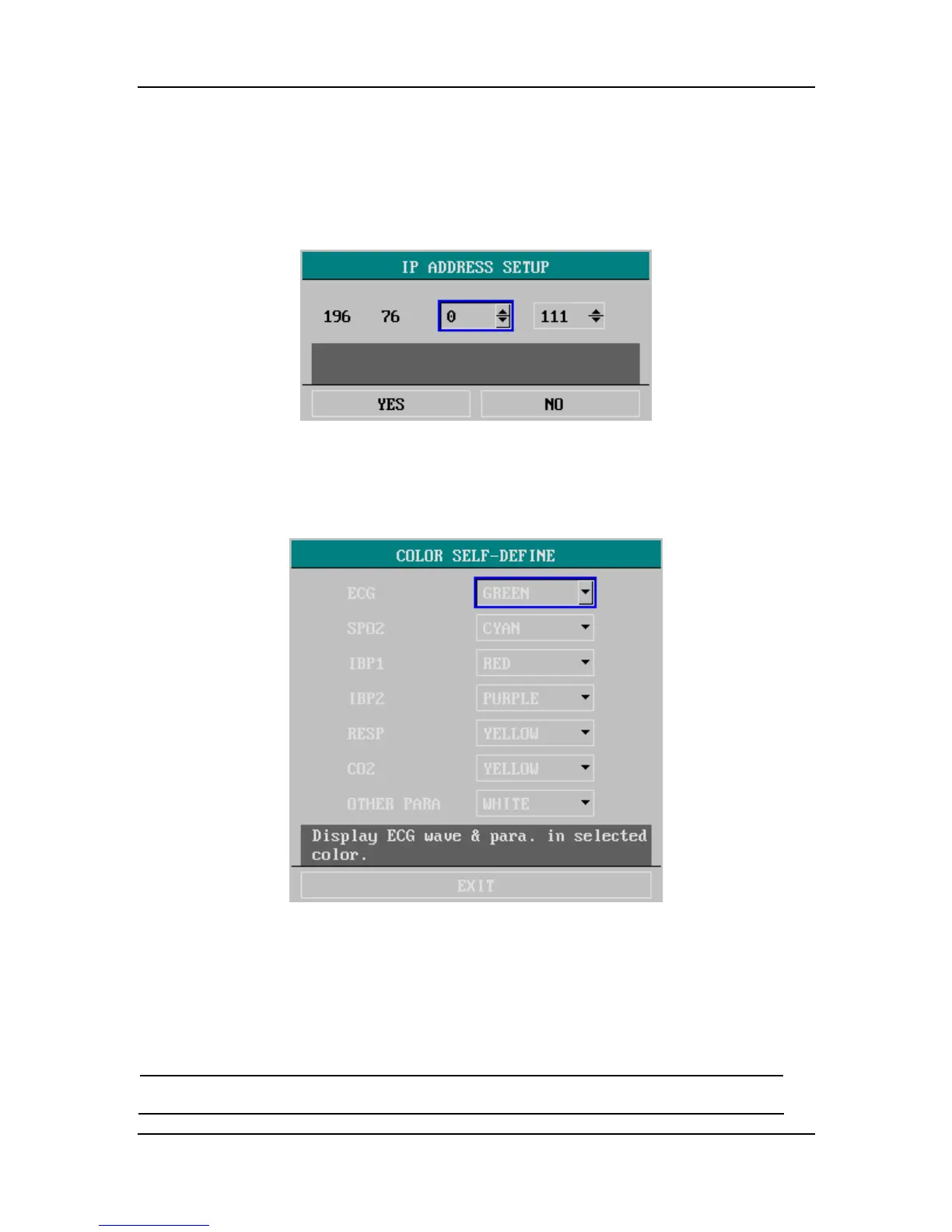

Figure 4-24 IP Address Setup
4.7.3 Self Definition of Color
Select COLOR SELF-DEFINE >> in USER MAINTAIN menu. The following menu appears.
Figure 4-25 Self-definition of color
This menu allows you to choose in which color the waveform(s) and parameter(s) of a parameter
module are to be displayed.
OTHER PARA refers to the parameters, NIBP and TEMP, which do not have waveform.
CO2 refers to the parameters measured by CO2 module.
NOTE
z Your monitor may not include all parameters.
