Mindray DPM 4 Operator's Manual

4-16
4.4.8 Trace Setup
Select TRACE SETUP>> in SYSTEM SETUP menu. The following menu appears.

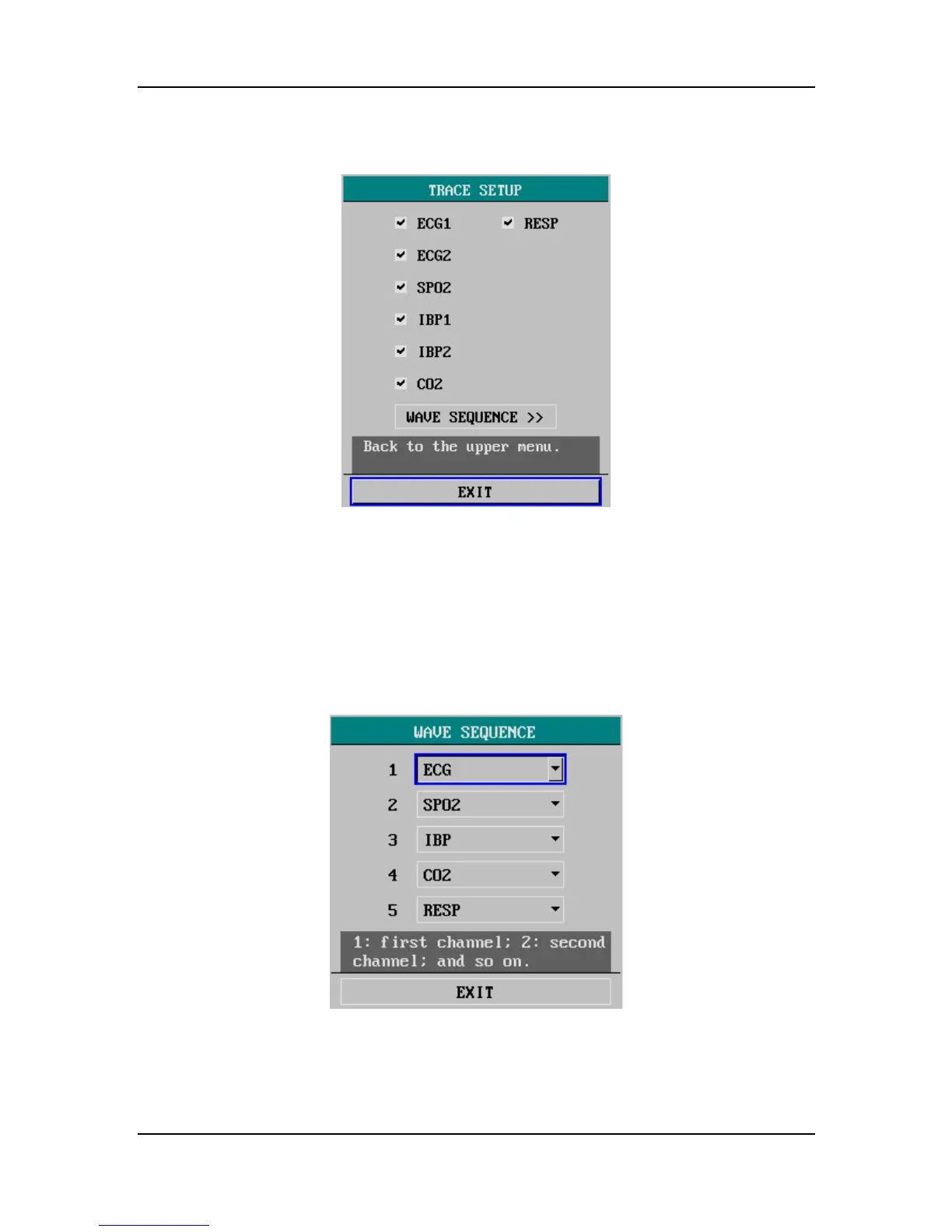

Figure 4-14 Trace Setup
This menu allows you to select the parameter waveform(s) to be displayed. The mark “√”
indicates the parameter waveform will be displayed, and that without the mark will not be
displayed. The TRACE SETUP menu merely contains the parameter modules enabled in the
MODULE SETUP menu. Besides, in the MULTI-LEADS DISPLAY mode or the
HALF-SCREEN MULTI-LEADS display mode, the ECG1 waveform and the ECG2 waveform
are inactive.
In addition, the WAVE SEQUENCE >> option allows you choose in which sequence the
parameter waveforms are displayed from the upper to the lower.
Figure 4-15 Wave Sequence
