2.2 External Appearance
2.2.1 Front Panel

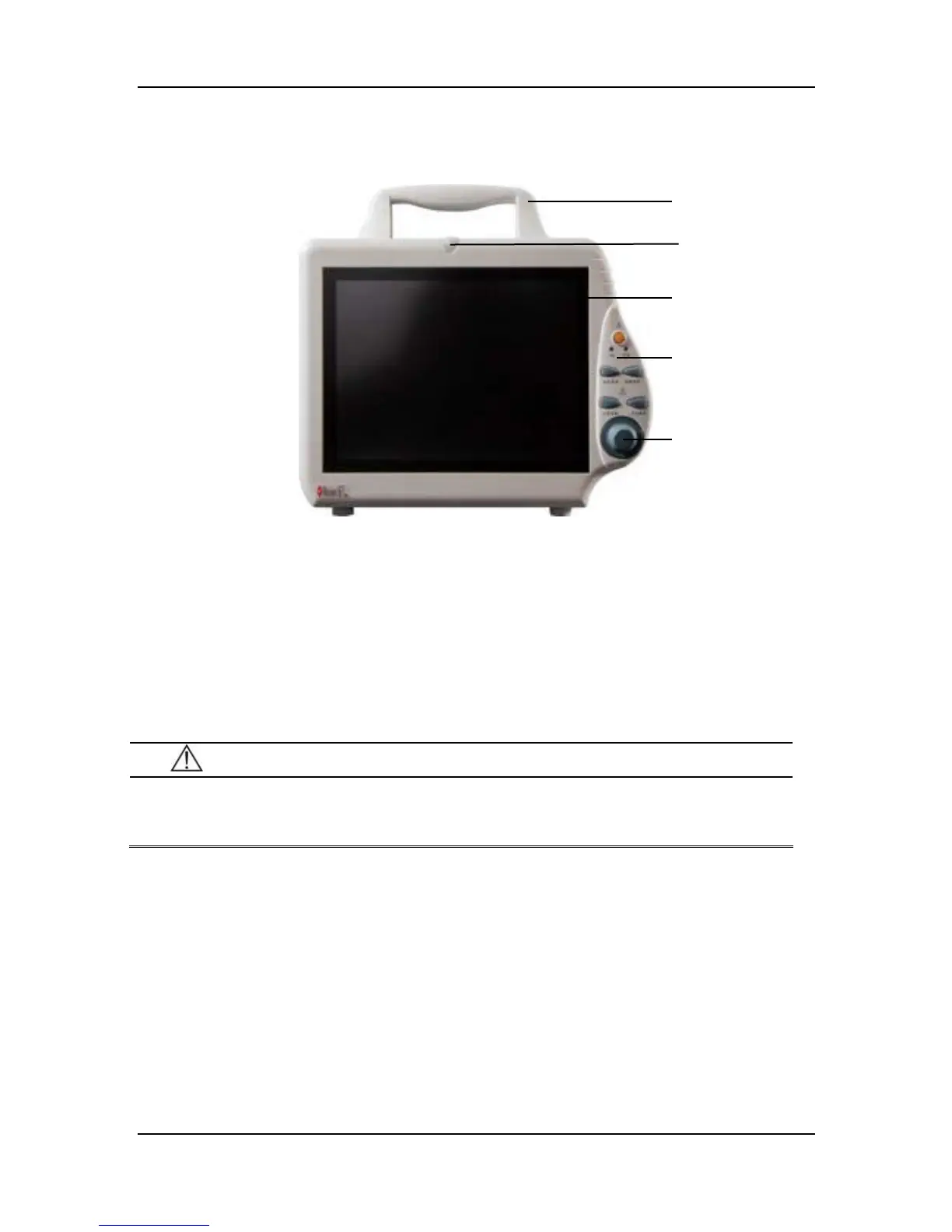

Figure 2-1 Front Panel
This monitor is designed to comply with the requirements of relative international safety
standards (IEC60601-1, EN60601-2-27 and EN60601-2-30) for medical electrical equipment.
This monitor has floating inputs and is protected against the effects of defibrillation and
electrosurgery. When proper electrodes are used and applied according to the manufacturer
instructions, the screen display will recover within 10 seconds after defibrillation.
The alarm indicator of this monitor complies with the requirement of EN60825-1 A11 Class 1 for
LED. The LED indicator varies its flash color and frequency to indicate different alarm levels.
WARNING
z Move or lift the monitor by the handle only. Do not use the patient cable or the
power cord to move or lift the monitor. It might cause the monitor to fall, which
might damage the monitor or injure the patient.
Handle
Alarm indicator
Display
Control panel
Control knob
