9-4
9.3 Trend Table Recall
Select TREND TABLE >> in SYSTEM MENU. The following window appears.

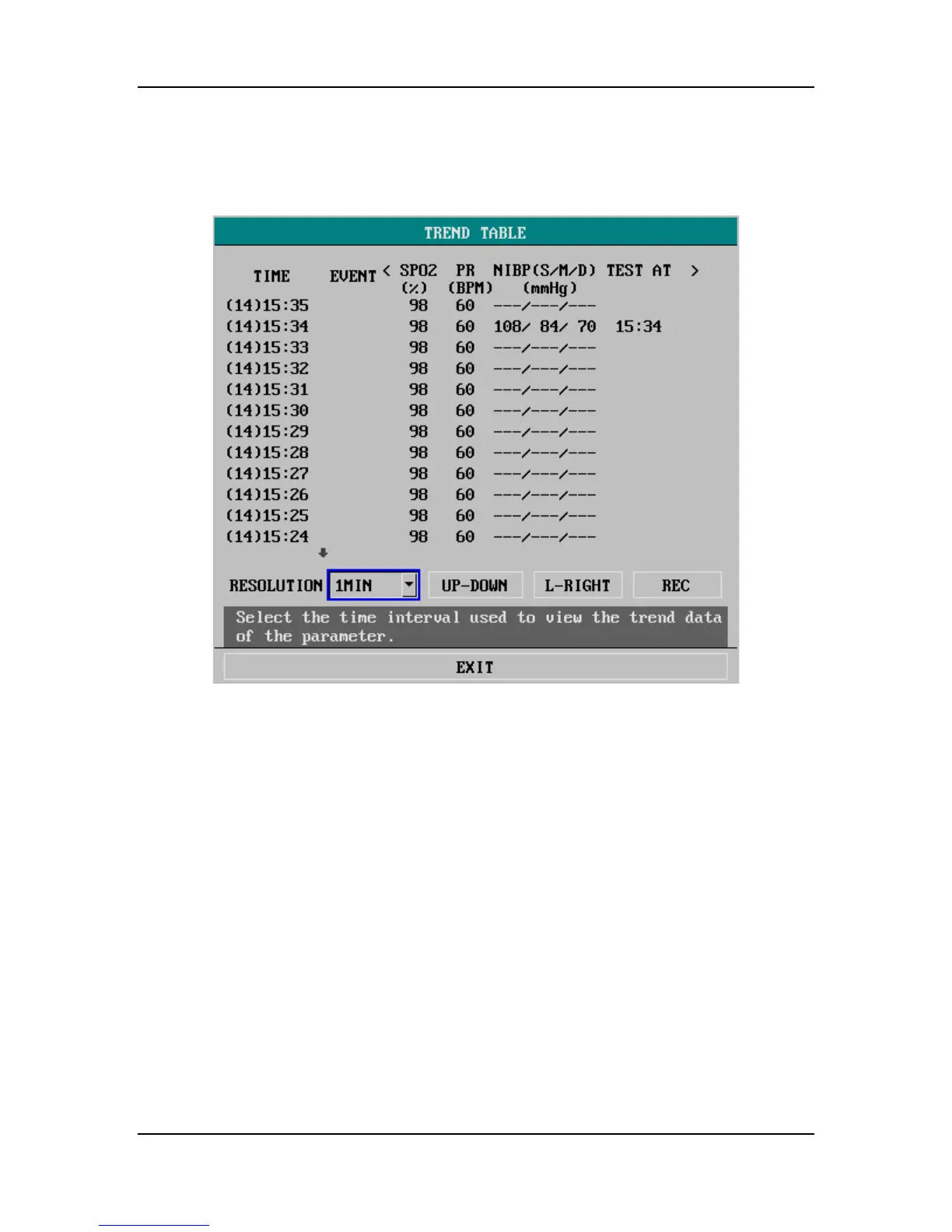

Figure 9-2 Trend Table
The TIME is displayed on the left of the trend table. On the top is the latest time. From the upper
to the lower, the interval between two adjacent times depends on the preset resolution. And the
date is contained in the brackets. On the right of the TIME is the EVENT. If a marked event
happened at a specific time, the mark will be displayed aside that time in the EVENT field. On
the right of the trend table are parameter names and the trend data. The symbol "āā" means the
parameter is not measured at the corresponding time. Besides, the L-RIGHT option allows
change of the parameter name and the trend data.
If you select to review the NIBP trend data, the measurement results as well as the specific
measurement time (in the TEST AT filed) are displayed. If more than one measurement results
are obtained in a time interval, only one result is to be displayed in the measurement result field.
ī RESOLUTION
1. Rotate the control knob to highlight the field at the right of RESOLUTION.
2. Press the control knob, and a popup value with the options, 1MIN, 5 MIN, 10MIN, 30MIN
and 60MIN, is opened.
3. The time displayed in the TIME filed changes with the resolution.
