15-17
AUTO STANDBY
Range: 0 to 60min.
If no respiration waveform is detected in the selected time,
the CO2 module enters the standby mode automatically.
When AUTO STANDBY is set to 0min, it means the CO2
module is in MEASURE state. If the sampling line is not
connected, the CO2 module enters the standby mode
automatically 3 minutes later.
ZERO CAL
This option allows you to zero manually so as to eliminate
the adverse affect of baseline drift in the process of
measurement.
CONFIG >>
Select CONFIG >> to access the CO2 CONFIG menu.
You can select either FACTORY CONF or USER CONF.
After finishing the selection and exiting the menu, a dialog
pops up asking for confirmation of your selection.
15.3.4 CO
2
User Maintain Menu

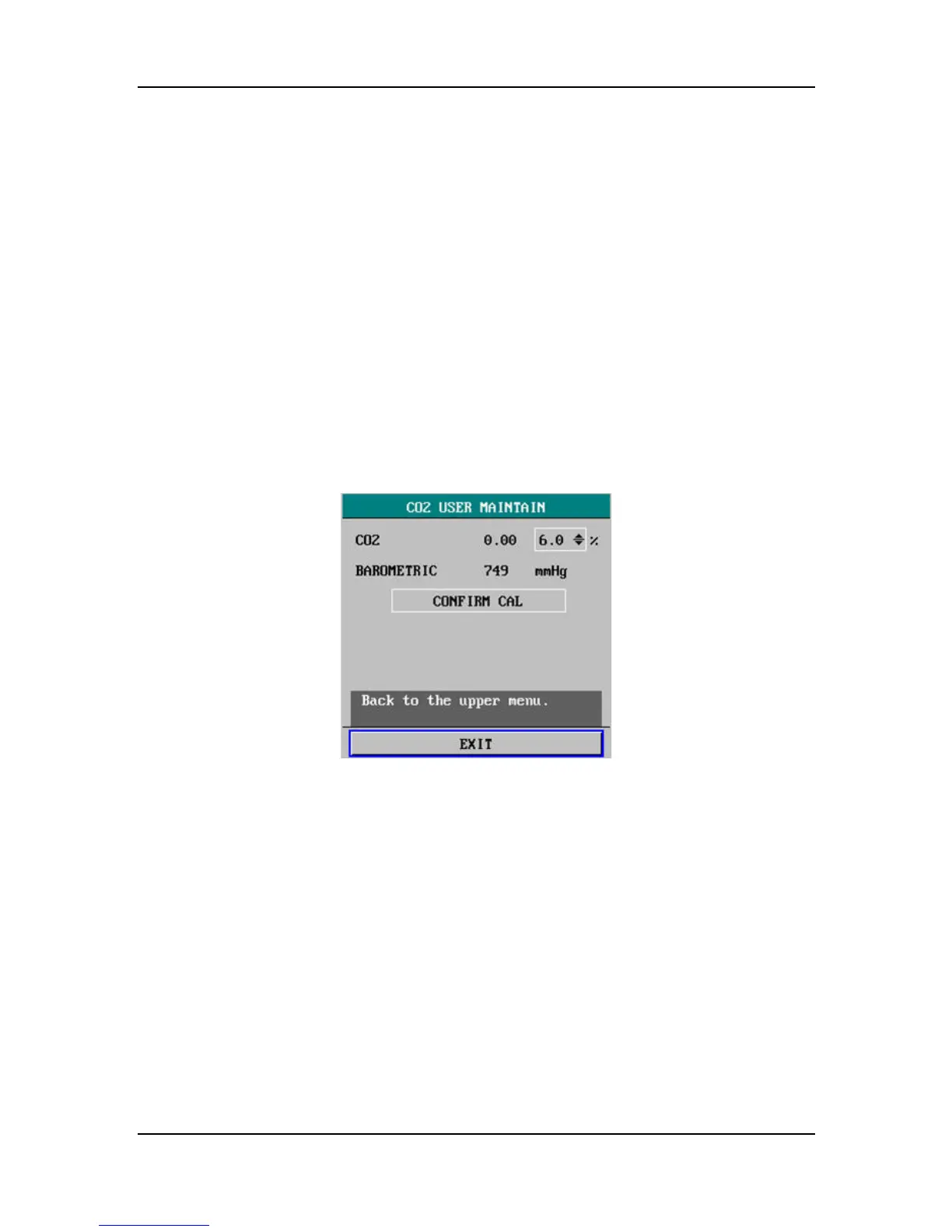

Select CO2 USER MAINTAIN >> in USER MAINTAIN menu. The following menu appears.
Figure 15-10 CO
2
User Maintain Menu
The following information is displayed in the menu above.
CO2 The currently measured CO2 content.
Unit: %.
In the field at the right of the CO
2
value, you can select a standard gas containing a certain
amount of CO
2
for calibration.
BAROMETRIC The currently measured barometric pressure.
Unit: mmHg.
CONFIRM CAL This option allows you to confirm the calibration of the CO2
module.
