4.4.6 Analog Output
Select ANALOG >> in SYSTEM SETUP menu. The following menu appears.

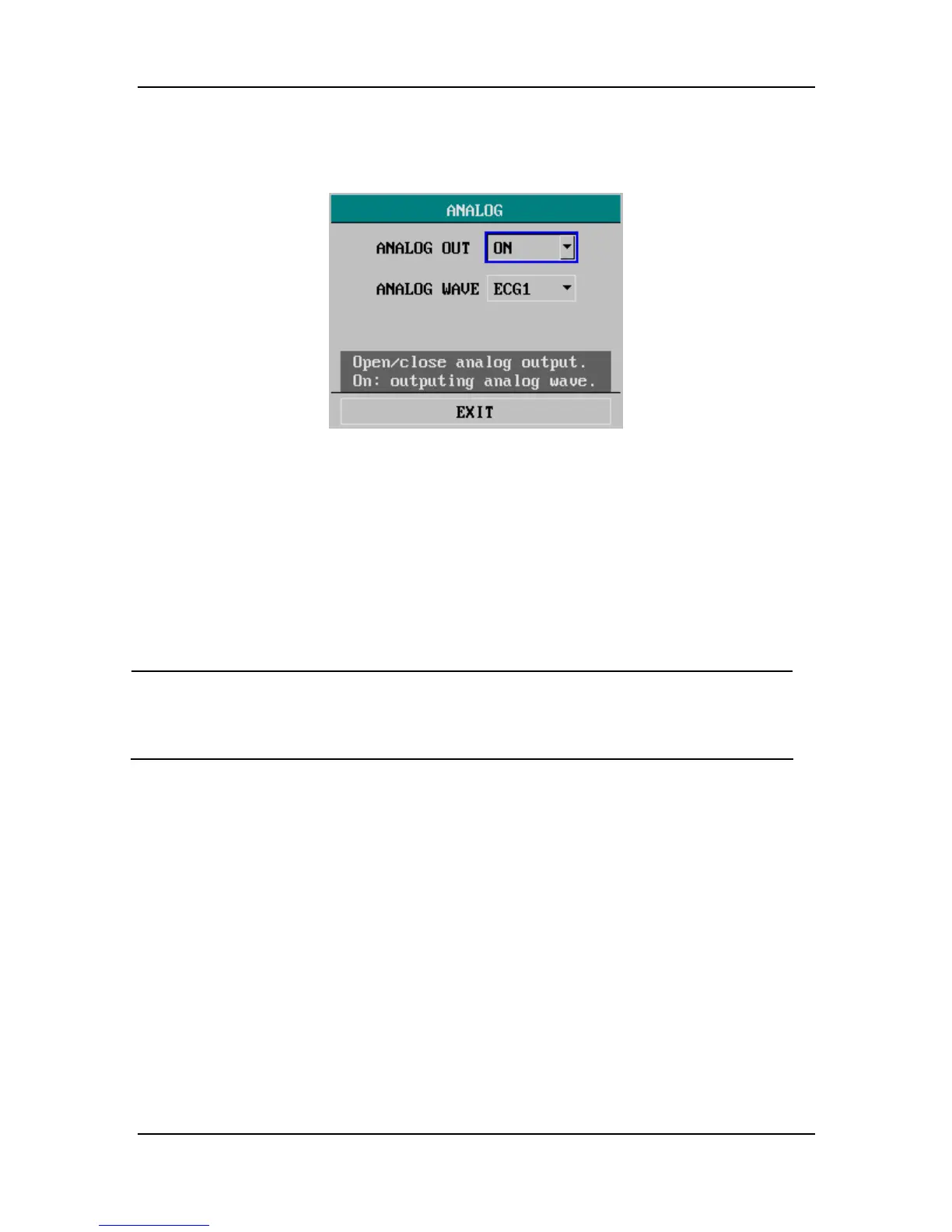

Figure 4-12 Analog Output
You can perform the following settings in the menu above:
ANALOG OUT
Analog output
Options: ON and OFF.
When ON is selected, analog signals can be output from
the auxiliary output port on the rear panel of the monitor.
ANALOG WAVE
Options: ECG1, ECG2, IBP1 and IBP2;
In the MULTI-LEADS DISPLAY mode, the ECG3,
ECG4, ECG5 and ECG6 options are also available.
NOTE
z If DEFIB. SYN or NURSE CALL is selected from the AUX OUTPTU options in
the USER MAINTAIN menu, the ANALOG>> option in the SYSTEM SETUP
menu will be inactive, and the monitor will be unable to output analog signals. For
details, please refer to 4.7 Maintenance.
