2.2.3 Right Side Panel

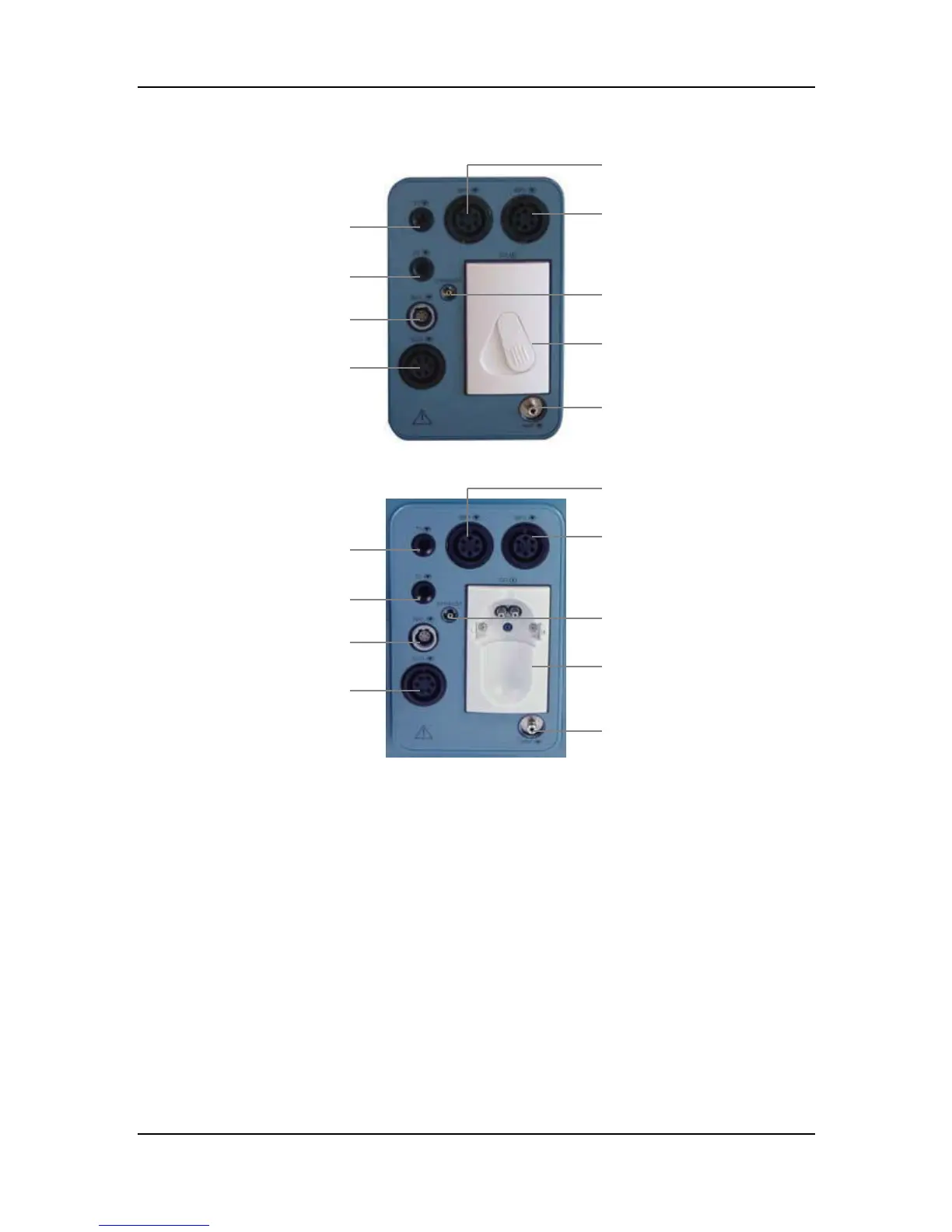

Figure 2-3 Right Side Panel (Oridion CO2)
Figure 2-4 Right Side Panel (Mindray DS CO2)
1. T1: Temperature probe connector (channel 1)
2. T2: Temperature probe connector (channel 2)
3. IBP1: IBP transducer connector (channel 1)
4. IBP2: IBP transducer connector (channel 2)
5. SpO2: SpO2 sensor connector
6. ECG: ECG cable connector
7. Exhaust outlet
8. CO2: CO2 sensor connector (Oridion)
9. NIBP: NIBP cuff hose connector
10. CO2: CO2 gutter connector (Mindray DS)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
10
9
