Mindray DPM 4 Operator's Manual

9-6
9.4 NIBP Recall
Select NIBP RECALL >> in SYSTEM MENU. The following window appears.

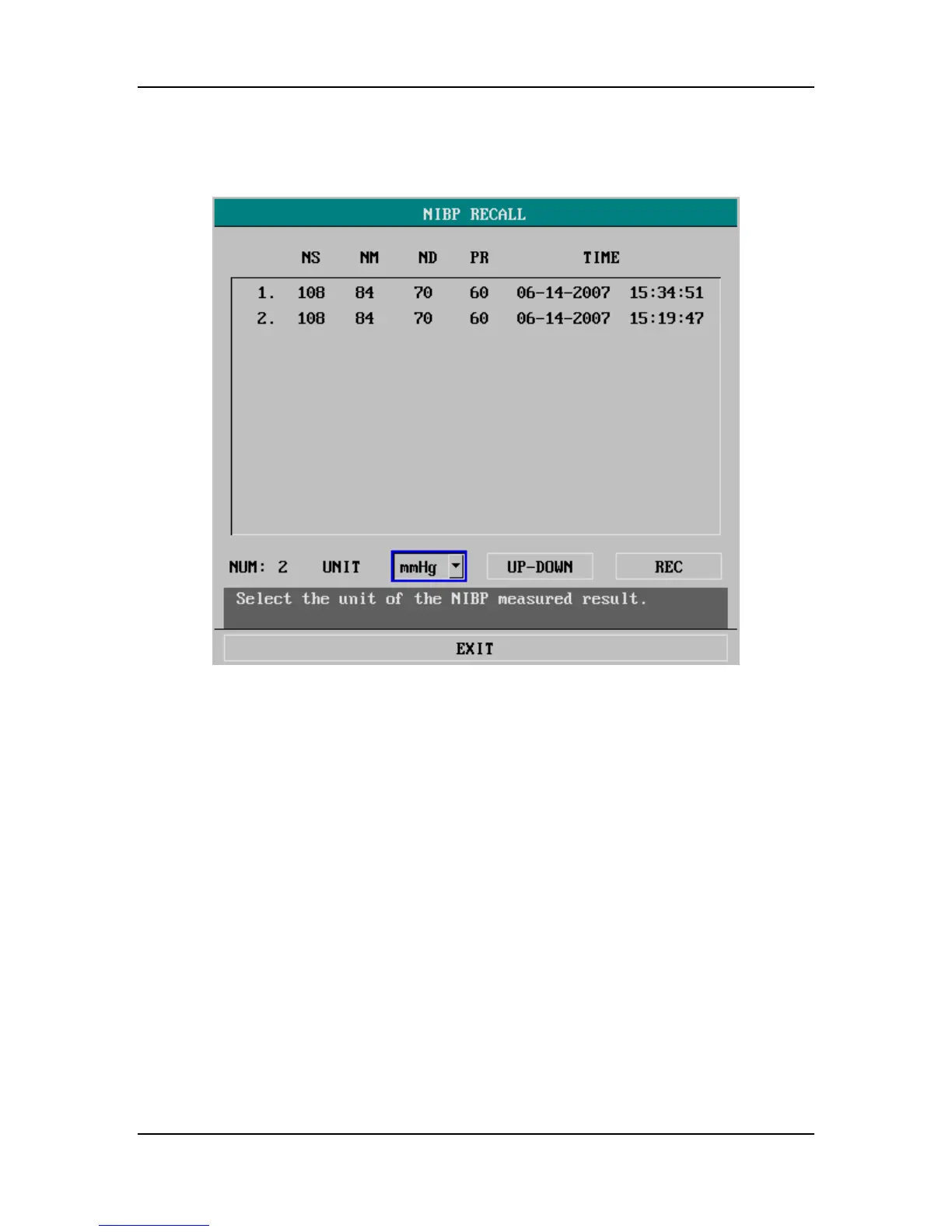

Figure 9-3 NIBP Recall
The NIBP RECALL window shows the non-invasive systolic pressure (NS), non-invasive mean
pressure (NM), non-invasive diastolic pressure (ND), puse rate (PR) and the measurement time
(TIME). The optional pressure units (UNIT) are mmHg and kPa. NUM indicates the current
measurement times. PR is derived from NIBP measurements. A maximum of ten measurements
can be displayed on the screen once. If there are more, you may use the UP-DOWN option to
review the
data of a later or earlier time. If the measurement times surpass 800, only the latest 800
measurements are to be displayed. The REC option allows you to print out all measurement data
of NIBP RECALL.

Mindray DPM 4 Specifications

General

Brand	Mindray
Model	DPM 4
Category	Medical Equipment
Language	English
