2.3 Control Panel

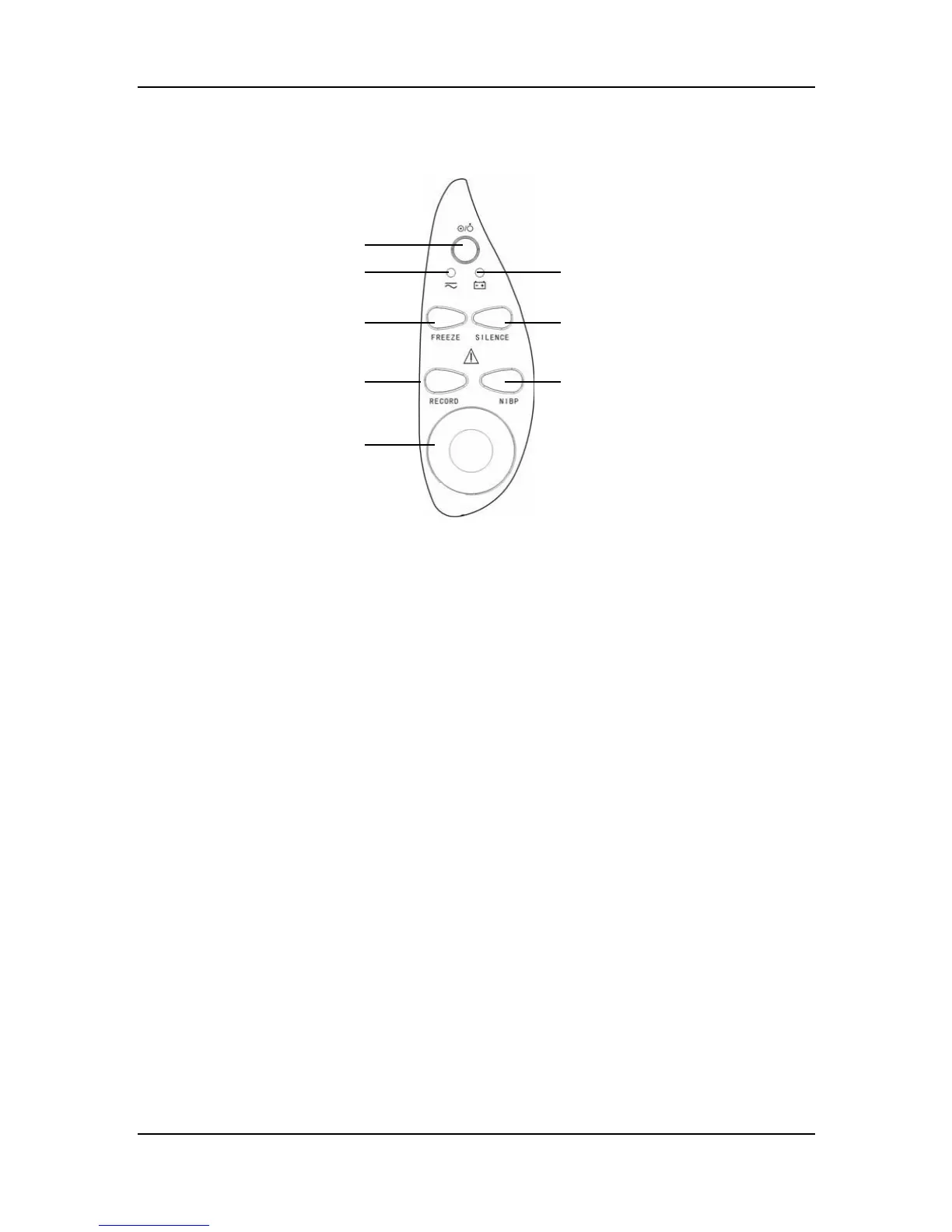

Figure 2-6 Control Panel
1. Power switch
This key turns the monitor ON and OFF. To turn OFF the monitor, please press this key and
hold for more than 2 seconds.
2. AC power indicator
ON: AC power is applied to the monitor.
OFF: AC power is not applied to the monitor.
3. Battery indicator
The battery indicator tells the battery status. See 2.5 Batteries for more information.
4. FREEZE
This key is pressed to freeze and unfreeze waveforms.
5. SILENCE
You can press this key to pause alarms, silence the monitor or clear alarms. You can also
switch between different alarm statuses through this key.
6. RECORD
Press this key to start or stop recording.
7. NIBP
Press this key to start or stop the non-invasive blood pressure measurement.
8. Control Knob
The main operator control is the control knob. The control knob rotates in either direction to
highlight parameter labels and menu options. After highlighting the desired selection, press
the control knob to execute an operation, make a selection, view a new menu or a small
drop-down list. This procedure is referred to as “select” through out the manual. Remember
rotate to highlight, and then press to select.
1
23
45
6
7
8
